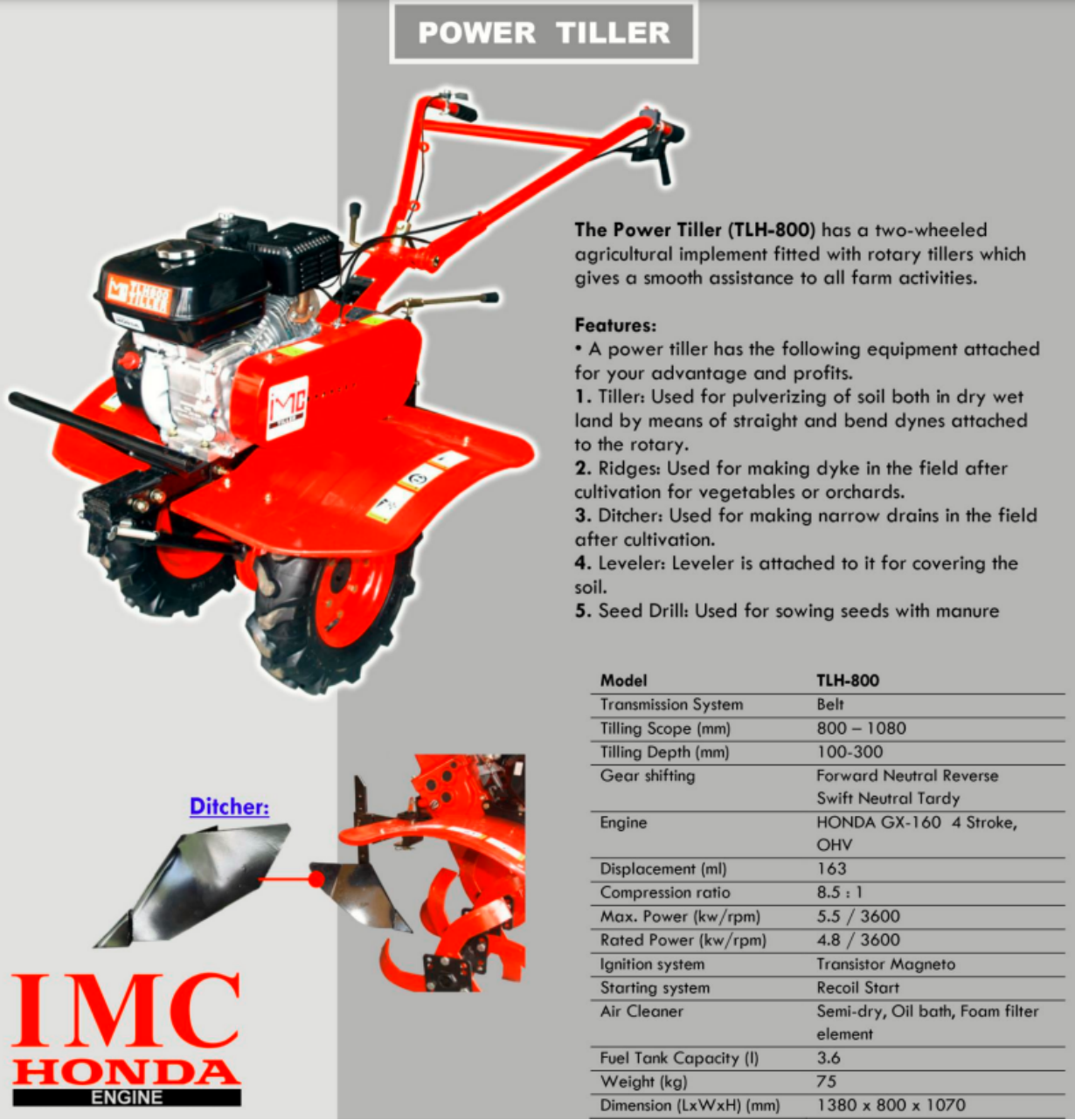

GASOLINE CULTIVATOR TLH-800 C/W HONDA ENGINE

Model

TLH-800

TILLER Dimension (LxWxH) mm

1380 x 800 x 1070

TILLER Net / Gross Weight (kg)

70 / 75

TILLER Transmission System

Belt

TILLER Tilling Scope (mm)

800 – 1080

TILLER Tilling Depth (mm)

100-300

TILLER Gear shifting

FORWARD NEUTRAL REVERSE

TILLER Gear shifting

SWIFT NEUTRAL TARDY

ENGINE Model (HONDA)

HONDA GX-160  4 Stroke, OHV

ENGINE Displacement (ml)

163

ENGINE Compression ratio

8.5 : 1

ENGINE Max. Power (kw/rpm)

5.5 / 3600

ENGINE Rated Power (kw/rpm)

4.8 / 3600

ENGINE Ignition system

Transistor Magneto

ENGINE system

Recoil Start

ENGINE Air Cleaner

Semi-dry, Oil bath, Foam filter element

ENGINE Fuel Tank Capacity (l)

3.6
