Product Code: EF6300iSE
Availability: Pre Order
Loading ...
Share:

Model: EF6300iSE (Made in Japan)

Price inclusive 6% GST.

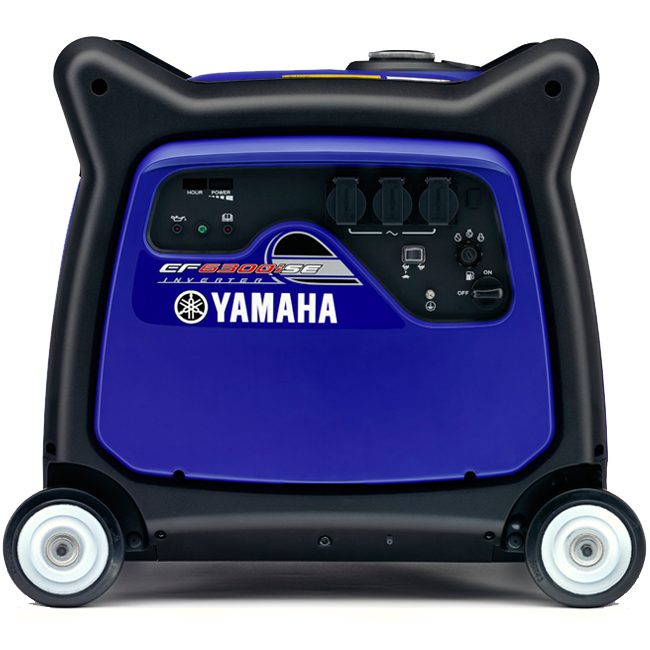

The Yamaha EF6300iSE is the most powerful and most advanced inverter generator
available, powering high demand items like pumps and air conditioners, as well as
sensitive equipment such as Plasma TVs, and computers.

This generator will run for up to 12.6 hours without refuelling and features electric starting
system for effortless starting.

Features

  • Electronic circuit breaker - Which automatically cuts off the current when the
    output voltage exceeds maximum output capacity.
  • 4-stroke OHV engine - Powerful Performance, Precise valve actuation,
    heat dissipation, low fuel consumption and low noise level.
  • Oil warning system - Engine stops automatically when oil level is low avoiding
    engine damage.
  • Auto Decompressor - Light recoil starting reduce compression for effortless starting.
  • Petrol Petcock - Reduces carburettor contamination during storage.
  • Brushless Alternator - Minimal maintenance, hassle free service and clean output.
  • DC Output Capability - Convenient for battery charging.
  • Spark Arrestor - Keeps sparks from exiting exhaust system.
  • Fuel Gauge - Displays fuel level without need of opening the fuel cap.

Technical Specifications

Brand Yamaha
Country of Origin Japan
Maximum AC Ouput 6.3kVA
Rated AC Output 5.5kVA
Power Type 230V (single phase-50Hz)
Voltage Stability (Setting) Less than 3%
Waveform Distortion Less than 2.5%
Frequency Stability Within +-0.1Hz
Engine Type Yamaha MZ360 4-stroke OHV Forced
Aircooled
Displacement 357cc
Starting System Electric Start (with battery)
Noise Level at 7meter 58dBA - 1/4 load, 60dBA - Full load
Fuel Tank Capacity 17 Liters
Operating Hours 1/4 Load - 15Hours
Rated Load - 5.6 Hours
Soundproof Frame Material Resin (Rust and corrosion proof)
Dimensions (L x W x H) 780mm x 616mm x 692mm
Dry Weight 88kg (with 4 wheels)
Circuit Breaker System Electronic
Oil Level Warning System Equipped
Pilot Lamp During Operation Equipped
Economy Control System Equipped
Special Key Points All control on 1-side of unit
  Led Power Meter to check power used
  Electronic Autochoke for AMF operation
  Twin lifting bars for ease of loading
  Digital hourmeter display total running
time and ease of maintenance
  Complies with card tier III Approval for
1000 Hours durability
