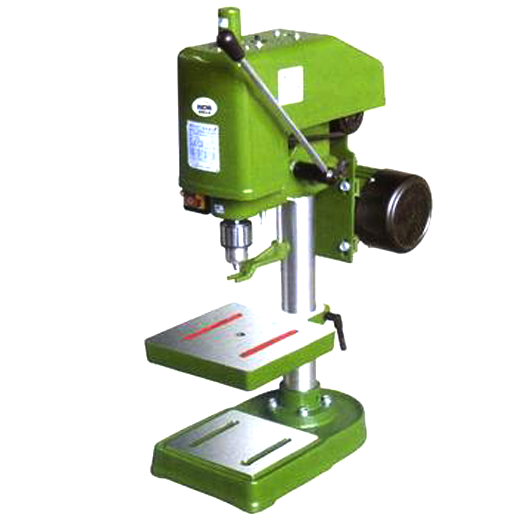

Xest Ling Tapping Machine M12, 370W, 750rpm, 50kg SWJ-12
Xest Ling Tapping Machine M12, 370W, 750rpm, 50kg SWJ-12

Xest Ling Tapping Machine M12, 370W, 750rpm, 50kg SWJ-12

Product Code: SWJ-12
Availability: Pre Order
Loading ...
017 432 8850012 387 8850
Share:

Model: SWJ-12
SWJ series tapping machine.

Price inclusives 6% GST.

Features

  • Simple structure and easy operation.
  • It uses machinery friction clutch make which prolong the life of motor working stable and low noise and also has the over loading protection function .
  • It can tapping continuosly widely used at all kinds of machinery instrument , hardware tools and so on.

Specifications

Max. Tapping Capacity   Cast Iron: M12
Steel: M8
Max. Drilling Capacity N/A
Diameter of Column 60 mm
Spindle Travel 40 mm
Distance Spindle Axis to Column Surface 127 mm
Max. Distance Spindle Nose to Workable 240 mm
Max. Distance Spindle Nose to Base 370 mm
Spindle Taper B16
Spindle Speeds Range 260-850rpm
Spindle Speeds N/A
Dimensions of Worktable Surface 235mm x 235mm
Dimensions of Base Worktable Surface 450mm x 250mm
Overall Height 810 mm
Motor 370 W
Volt 220~240V, Single Phase
Weight 50 kg
