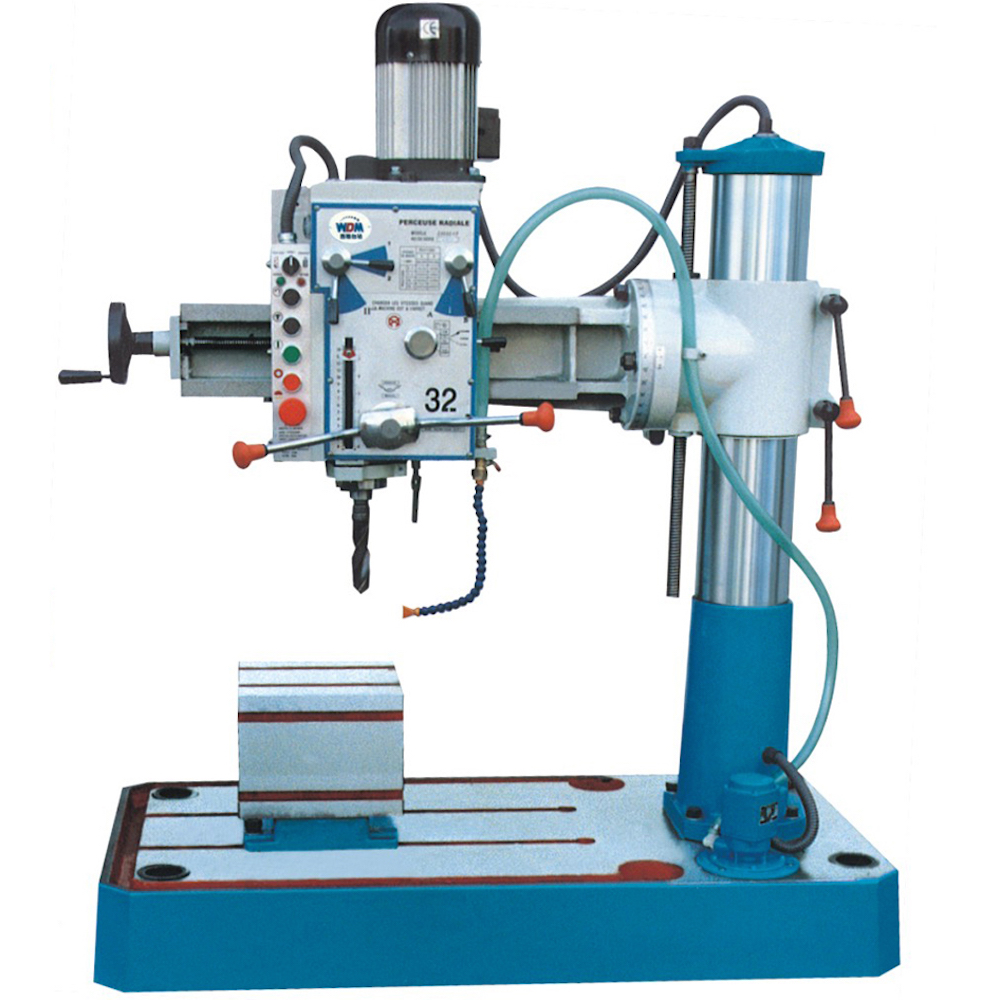

Xest Ling Radial Arm Drill 32mm, 750W, 1600rpm, 580kg Z3032X7P
Product Code: Z3032X7P
Availability: Pre Order
Model: Z3032X7P
Radial arm drilling machine with spindle speeds range from 100 to 1600rpm.
Price inclusives 6%GST.
Features
- With wide range of speed, with manual power feeds. The feed of machines are very easily engaged and disengaged at any time.
- The radial arm can rotated and can tilted 45±°,it reliable and easy job can be done.
- Main parts are made by machine center which import from KIA with high precision and efficiency, ensuring reliability and high quality.
- The machine with small appearance and much function, the machine are widely used for drilling, counterboring, reaming,tapping and etc.
Specifications
| Max. Drilling Capacity | Cast Iron: 31.5mm Steel: 25mm |
| Max. Tapping Capacity | Cast Iron: M20 Steel: M16 |
| Diameter of Column | 150 mm |
| Spindle Travel | 130 mm |
| Distance Spindle Axis to Column Generating Line | 300~700mm |
| Max. Distance Spindle Nose to Working Surface of Base | 275~680mm |
| Spindle Taper | MT3 |
| Spindle Speeds Range | 100~1600rpm |
| Spindle Speeds Series | 8 |
| Spindle Feeds | 0.08, 0.14, 0.23 mm/r |
| Rotary angle of rocker in horizontal plane ( ° ) | 360° |
| Dimensions of Worktable Surface | 250mm x 250mm |
| Dimensions of Base | 1200mm x 6250mm x 155mm |
| Overall Height | 1230mm |
| Motor | 750 W |
| Volts | 240V Single Phase |
| Weight | 500 kg |
