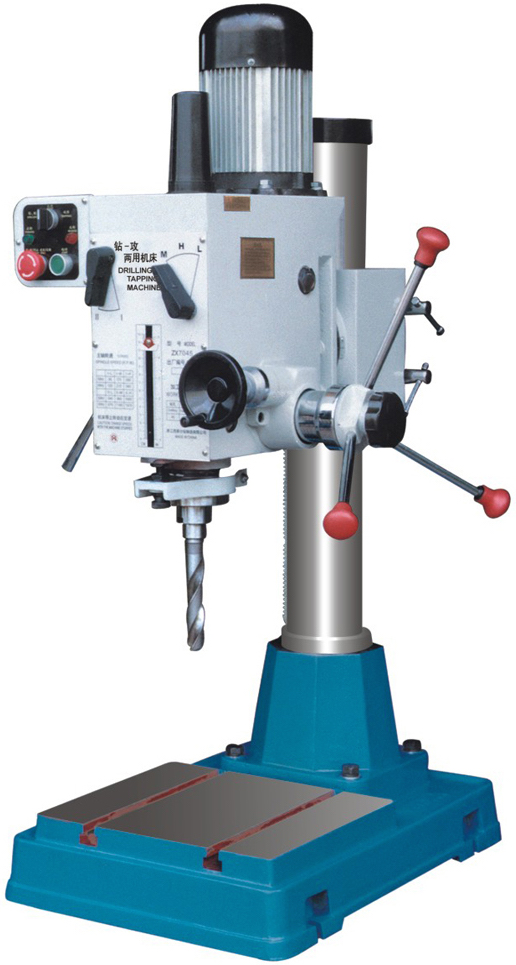

Xest Ling Gear Drilling & Tapping 40mm/M32, 750W, 270kg ZS-40P
Xest Ling Gear Drilling & Tapping 40mm/M32, 750W, 270kg ZS-40P

Xest Ling Gear Drilling & Tapping 40mm/M32, 750W, 270kg ZS-40P

Product Code: ZS-40P
Availability: Pre Order
Loading ...
017 432 8850012 387 8850
Share:

Model: ZS-40P
Gear head drilling & tapping machine.

Price inclusives 6%GST.

Features

  • Gear driven: Accurate and powerful.
  • 6 variable speed.
  • The head is rotatable for 360°.
  • Tiltable ±45°.

Specifications

Max. Drilling Capacity Cast Iron: 40mm
Steel: 32mm
Max. Tapping Capacity   Cast Iron: M24
Steel: M22
Diameter of Column 115 mm
Spindle Travel 120 mm
Distance Spindle Axis to Column Generating Line 272.5 mm
Max. Distance Spindle Nose to Table N/A
Max. Distance Spindle Nose to Base 800 mm
Spindle Taper MT4
Spindle Speeds Range 95, 170, 280, 540, 960, 1600rpm
Spindle Speeds 6
Dimensions of Worktable Surface N/A
Dimensions of Base  690mm x 520mm
Overall Height 1450mm
Motor 750 W
Volts 380~415V, Three Phase
Weight 270 kg
