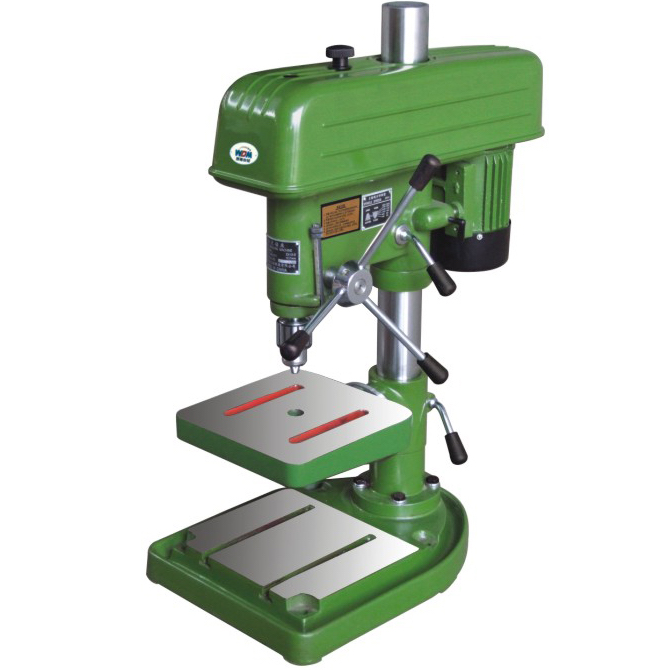

Xest Ling Bench Drilling 12mm, 4100rpm, 90kg Z512-2
Xest Ling Bench Drilling 12mm, 4100rpm, 90kg Z512-2

Xest Ling Bench Drilling 12mm, 4100rpm, 90kg Z512-2

Product Code: Z512-2
Availability: Pre Order
Loading ...
017 432 8850012 387 8850
Share:

Model: Z512-2
Industrial type bench drilling machine.

Features

  • High spindle speeds
  • High precision chuck
  • Great precision & rigidity

Specifications

Max Drilling Capacity 12.7mm
Diameter of column 70mm
Spindle Travel 100mm
Distance spindle axis to column surface 193mm
Max. Distance spindle nose to worktable    332mm
Max. Distance spindle nose to base 556mm
Spindle Taper B16
Spindle Speeds Range 480~4100rpm
Spindle speeds 5
Dimensions of worktable surface 265mm x 265mm
Dimension of base worktable surface 528mm x 360mm
Overall Height 1037mm
Motor 370W
Weight 108kg
