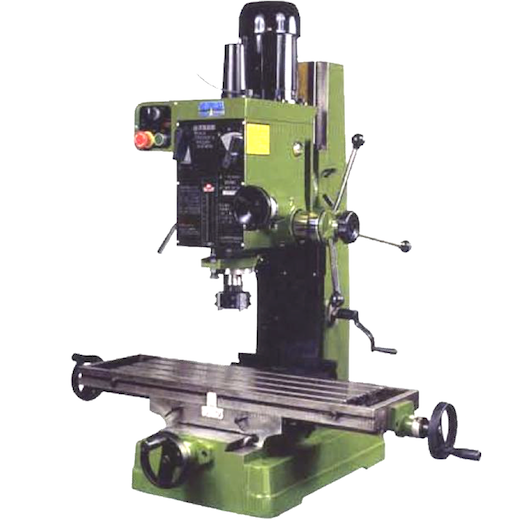

West Lake Milling & Drilling M12 750W 1600rpm 3Ø 270kg ZX-7045
West Lake Milling & Drilling M12 750W 1600rpm 3Ø 270kg ZX-7045

West Lake Milling & Drilling M12 750W 1600rpm 3Ø 270kg ZX-7045

Product Code: ZX-7045 (3 phase)
Availability: Pre Order
Loading ...
017 432 8850012 387 8850
Share:

Model: ZX-7045 (3 phase)

Price inclusives 6%GST

Features

  • Gear shift, friendly operation
  • Wide range of speed adjustment
  • Gear driven, gear quench high carrying capacity greatorsional moment
  • Head rotation is operated with bracket. Will be much more precise while beveling a hole.
  • High gear precision, low noise

Specifications

Max. Tapping Capacity   M12
Max. Drilling Capacity Cast Iron: 45 mm
Steel: 28mm
Width of Face Milling 80 mm
Diameter of Vertical Milling 28 mm
Spindle Travel 120 mm
Distance Spindle Axis to Column Surface 260 mm
Max. Distance Spindle Nose to Workable 475 mm
Spindle Taper MT 4
Spindle Speeds Range 95-1600 rpm
Spindle Speeds 6
Dimensions of Table 820 x 240 mm
Travel of Worktable 550 x 200 mm
Overall Height 1040 mm
Headstock Travel 410 mm
Motor 750 W
Weight 270 kg
