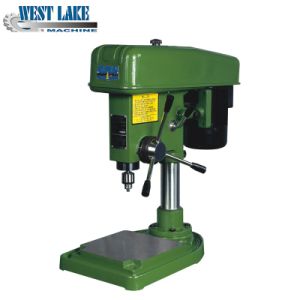

West Lake Industrial Bench Drill 6mm, 250W, 5600rpm, 38kg Z-406C
Product Code: Z-406C
Availability: Pre Order
Model: Z-406C (1 phase)
Z-406C is an Industrialize bench drill.
Features
- High spindle speeds
- High precision chuck
- Great precision & rigidity
Specifications
| Max Drilling Capacity | 6mm |
| Diameter of column | 50mm |
| Spindle Travel | 65mm |
| Distance spindle axis to column surface | 140mm |
| Max. Distance spindle nose to worktable | --- |
| Max. Distance soindle nose to nose | 225mm |
| Spindle Taper | B10 |
| Spindle Speeds Range | 1400 - 5600rpm |
| Spindle speeds | 3 |
| Dimensions of worktable surface | --- |
| Dimension of base worktable surface | 200mm x 200mm |
| Overall Height | 606mm |
| Motor | 250W |
| Weight | 38kg |
