Water Pump Product
Water Pump Hn
Water Pump
Product Code:

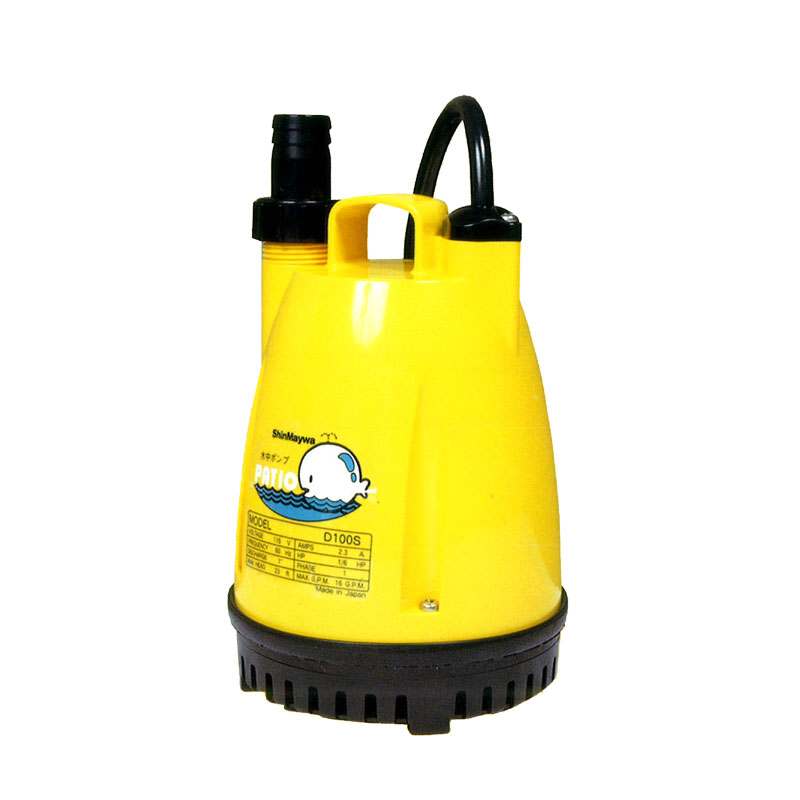

ShinMaywa Submersible Pump
Availability:
Pre Order
Quantity :
Send Enquiry
Loading ...
017 432 8850
012 387 8850
Share:
Description
Specifications
Model
D100S
D150S
Bore
25(15)mm [1″(3/4″)]
Maximum Capacity (50Hz)
70 Q/min (18.5 USG/min)
89 Q/min (23.5 USG/min)
Maximum Capacity (60Hz)
69 Q/min (18.2 USG/min)
88 Q/min (23.2 USG/min)
Maximum Total (net) head (50Hz)
7.3m(23.9ft)
9.6m(31.5ft)
Maximum Total (net) head (60Hz)
8.0m(26.2ft)
10.6m(34.8ft)
Rated Output
100W
150W
Rated Voltage
100V
Rated Current
2.3A
3.4A
Motor overhead protection
Micro-thermal protector (MTP)
Pump weight
2.7kg (6 lbs)
3.0kg (6.6 lbs)
