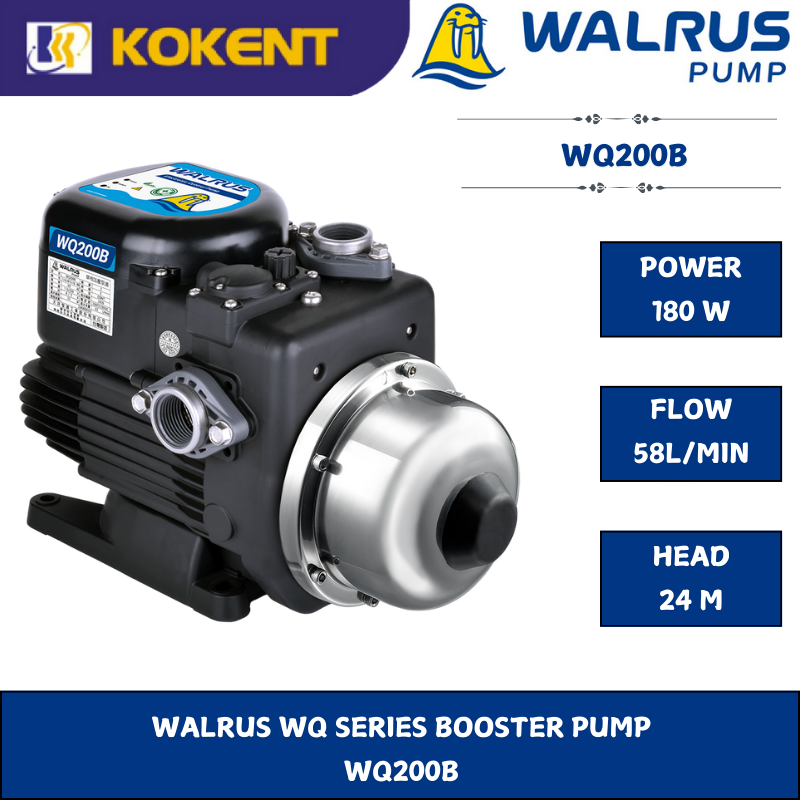

WALRUS WQ SERIES BOOSTER PUMP WQ200B
Water-Cooled Electronic Control Pump
WQ_B Series
Water-cooled Advanced water-cooled technology directly and effectively reduces motor temperature rise, significantly boosting operational efficiency.
Applicable Industries
Construction Industry
Agriculture & Fishing Industry
Manufacturing Industry
Electricity & New Energy Industry
Entertainment & Leisure Industry
Accommodation & Food Service Industry
Wholesale & Retail Trade
Water Supply & Pollution Control
Service Industry
Product Features
█ Dual Outlet Design (Horizontal/Vertical)
Adapts to different installation space requirements and is user-friendly.
█ Ultra Quiet
By replacing traditional fan designs, operational noise is greatly reduced. Moreover, the centrifugal impeller design significantly reduces operating noise, achieving a quietness comparable to a library at just 48 dB(A).
█ Lifespan Extension
Water-cooled reduces operational temperature and wear, extending the motor's lifespan and providing stable, long-term service for users.
█ Drainage Hole Design
To prevent water from directly entering and damaging the motor when the mechanical seal wears out.
█ Energy Efficiency
Superior to traditional air cooling, Water-cooled significantly reduces heat generation and loss, enhancing energy savings for users.
█ Quality of Water Usage
Wet parts are constructed from top-quality corrosion-resistant materials.
█ Antimicrobial
The only global brand to offer water pumps with Ag+ ions in the casing, SGS-certified to effectively prevent bacterial growth.
█ Thermal Overload protection
Equip with a thermal overload protection device to prevent motor burnout.
█ Double Dry-running Protection
Features a built-in temperature protection switch and a dry-running protection device to prevent overheating caused by operation without water.
█ Anti-cycling function
To avoid frequent pump start-stop problems caused by low water flow.
█ All-in-one unit
Integrates the pump, motor, pressure tank, electronic control board, and pressure switch to deliver a stabilized water supply.
Operating Conditions
█ Ambient Temperature:Max. +40°C
█ Liquids Temperature:+4°C~+40°C
█ Relative humidity:Max. 85%(RH)
█ System Pressure:Max. 8.5 kg/cm²
█ Inlet Pressure: Must be less than the pressure switch start value.
Applications
█ Apartment and residential water supply
█ Automatic booster system
█ Underground pumping system
█ Landscaping
█ Drinking water system
WQ_B , 50Hz
Compare Products
| Type | Power (kW) |
Phase (Ø) |
Cycle (Hz) |
Volts (V) |
Input (kW) |
Output (kW) |
Ampere (A) |
Preset Activation (kg/cm²) |
Maximum Head (M) |
Maximum Capacity (L/min) |
N.W. (kg) |
G.W. (kg) |
Maximum Pallet Amount |
| WQ200B | 0.18 | 1 | 50 | 200-240 | 1" | 1" | 1.5 | 1.6 | 24 | 58 | 8.9 | 9.5 | 36 |
| WQ400B | 0.37 | 1 | 50 | 200-240 | 1" | 1" | 2.8 | 2.0 | 31 | 87 | 9.9 | 10.5 | 36 |
Dimensions(mm)
WQ_B Series
