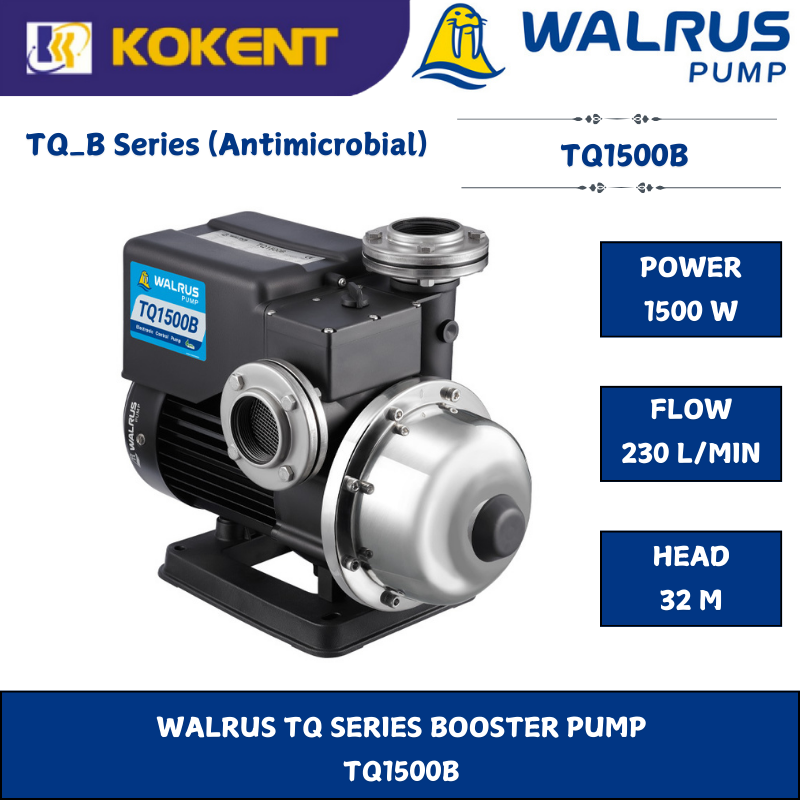

WALRUS TQ SERIES BOOSTER PUMP TQ1500B

Antimicrobial Electronic Control Pump

TQ_B Series (Antimicrobial)

Show Model No. | TQ1500B

The new feature of TQ_B series with adding silver ion to the pump casing has been scientifically proven to inhibit microbial growth up to 99% over a 24-hour period. The TQ_B series pumps are designed for water supply and pressure boosting in residential, commercial and light industrial applications where low or inadequate water pressure exists. It is suitable for boosting pressure from underground or surface water supplies.

Applicable Industries

Construction Industry

Agriculture & Fishing Industry

Manufacturing Industry

Electricity & New Energy Industry

Entertainment & Leisure Industry

Accommodation & Food Service Industry

Wholesale & Retail Trade

Water Supply & Pollution Control

Service Industry

Suitable Liquids

Potable water or other clean, thin or non-aggressive liquids.

Product Feature

The TQ_B is an antimicrobial, complete, all-in-one unit, consisting of pump, motor, pressure tank, and electronic controller. The built-in electronic controller provides constant pressure which ensures that the pump starts automatically when water is consumed and operates continuously until water is not required.

Compact design and quiet operation make the TQ_B series suitable for many applications.

The TQ_B is constructed from the top quality corrosion resistant materials.

Pump has built in dry-run shut off with automatic reset function.

The motor has built-in thermal overload to protect against high operating temperatures and over current. (Single phase motor only)

The TQ_B has an anti-cycling feature which prevents the pump from continuous starting and stopping when you have a dripping tap or minor leak in the system.

The pumps will lift water up to 6 m. with foot valve and pump suction piping filled with water.

Operating Condition

Ambient temperature: Max. +40°C

Liquid temperature: +4°C ~ +40°C

System Pressure : Max. 8.5 kg/cm²

Relative humidity: Max. 85% (RH)

Under normal operation, it is not necessary to adjust the pressure unless the cut in pressure is higher than preset activation point (refer to specification).

Specification, 50Hz
