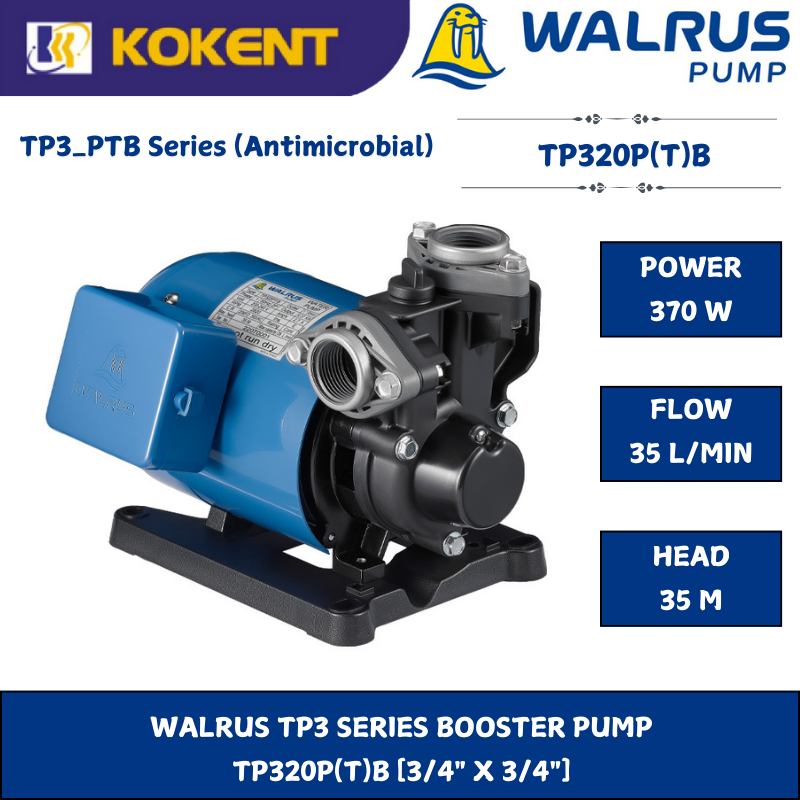

WALRUS TP3 SERIES BOOSTER PUMP TP320P(T)B [3/4" X 3/4"]
Antimicrobial Direct Water Pump
TP3_PTB Series (Antimicrobial)
Show Model No. | TP320P(T)B，
List Price NT$ NTD
The new feature of TP3_P(T)B series with adding silver ion to the pump casing has been scientifically proven to inhibit microbial growth up to 99% over a 24-hour period. Ideal for pumping clean, non-volatile liquids without fibres or solid in such applications as：Homes where the incoming city water supply pressure is too low, Portable water supply or underground, Irrigation, Washing/Cleaning system
Applicable Industries
Construction Industry
Agriculture & Fishing Industry
Manufacturing Industry
Electricity & New Energy Industry
Entertainment & Leisure Industry
Accommodation & Food Service Industry
Wholesale & Retail Trade
Water Supply & Pollution Control
Service Industry
Product Feature
The new feature of TP3_P(T)B series with adding silver ion to the pump casing has been scientifically proven to inhibit microbial growth by 99%
over a 24-hour period.
Manufactured with non-corrosive rust proof materials.
Special design high efficiency and low noise impeller.
High quality mechanical seal ensuring no leakage and long life.
Compact design, small size, easy installation.
Every pumps tested in our factory to ensure quality and reliability.
High performance, electricity saving motor with patented cooling construction. Build-in thermal overload protector for motor burnt out protection.
Operating Condition
Ambient temperature：Max. +40°C
Liquid temperature range：+4°C~+40°C
Suction head: Max. 8 m
TP3_P(T)B , 50Hz
Compare Products
| Type | Power (kW) |
Phase (Ø) |
Cycle (Hz) |
Volts (V) |
Ampere (A) |
Inlet (in.) |
Outlet (in.) |
H max (m) |
Q max (L/min) |
N.W. (kg) |
G.W. (kg) |
Maximum Pallet Amount |
| TP320P(T)B | 0.37 | 1 | 50 | 200-240 | 2.7 | ¾" | ¾" | 35 | 35 | 6.7 | 7.4 | 72 |
| TP325P(T)B | 0.37 | 1 | 50 | 200-240 | 2.7 | 1" | 1" | 35 | 35 | 6.7 | 7.4 | 72 |
Dimensions (mm)
