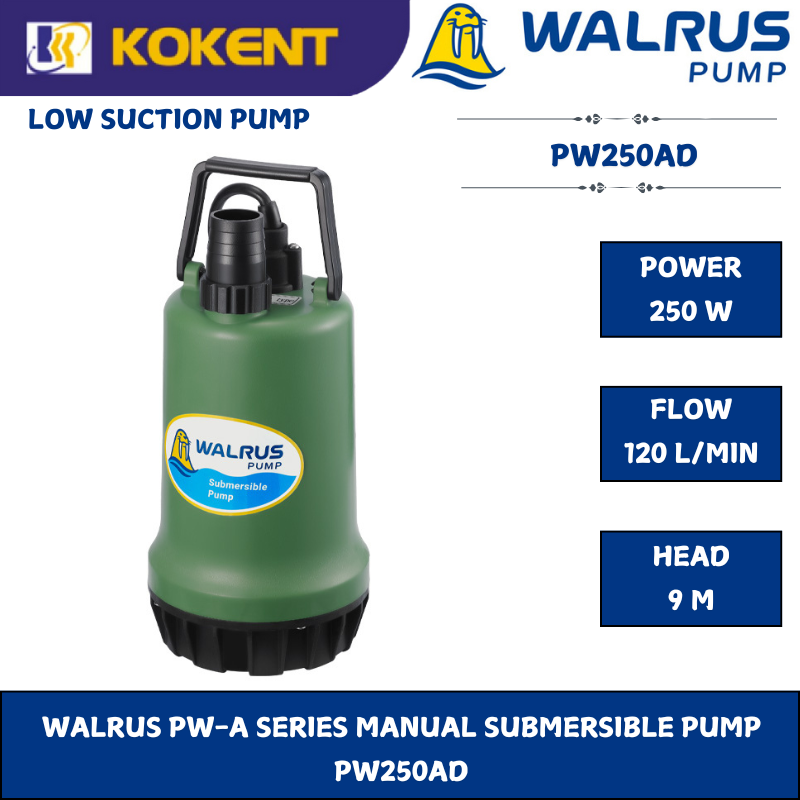

WALRUS PW-A SERIES MANUAL SUBMERSIBLE PUMP PW250AD
Submersible pump
PW-A Series
Show Model No. | PW250AD，
Submersible pumps for clean water, Corrosion-resistant and compact, Built-in capacitor, Supplied with power cable with plug, Motor with thermo overload protection, Suitable for cleaning washing towers and other confined spaces pumping use.
Applicable Industries
Construction Industry
Agriculture & Fishing Industry
Manufacturing Industry
Electricity & New Energy Industry
Entertainment & Leisure Industry
Accommodation & Food Service Industry
Wholesale & Retail Trade
Water Supply & Pollution Control
Service Industry
Product Feature
To be used to circulate water in garden ponds
To be applicable to the sprinkler for vegetations of parks.
Watering in the garden and washing car.
To drain the accumulated water for basement of residence.
To drain the ground water.
To drain accumulated water for civil and architecture engineering.
R: Available to used in sea fish breeding.
F: Equipped with float ball level switch.
C: Equipped With level regulator.
D: Low suction capability：1 mm
Characteristic
Submersible pumps for clean water.
Corrosion-resistant and compact.
Built-in capacitor.
Supplied with power cable with plug
Motor with thermal overload protection
Suitable for cleaning washing towers and other confined spaces pumping use.
Low suction Pump
Low Suction Pump (Drainage to 1mm from floor)
Compare Productsp>
| Type | Power (W) |
Cycle (Hz) |
Volts (V) |
Ampere (A) |
Outlet (in.) |
Nominal Set Head (M) |
Maximum Capacity (L/min) |
Dimensions L x W x H (mm) |
Cable Wire C x mm² x m | N.W. (kg) |
G.W. (kg) |
Maximum Pallet Amount |
| PW100AD | 100 | 506060 | 220-240110220 | 1.02.01.0 | 1" | 6.5 | 708080 | 164 x 164 x 270 | 3 x 1.5 x 3 | 4.5 | 4.9 | 72 |
| PW250AD | 250 | 506060 | 220-240110220 | 2.04.02.0 | 1½" | 9.0 | 120 | 164 x 164 x 350 | 3 x 1.5 x 53 x 1.25 x 53 x 1.25 x 5 | 6.0 | 6.4 | 32 |
| PW400AD | 400 | 506060 | 220-240110220 | 3.57.03.5 | 2" | 10 | 130 | 183 x 183 x 384 | 3 x 1.5 x 53 x 1.25 x 53 x 1.25 x 5 | 8.4 | 8.9 | 50 |
 |
