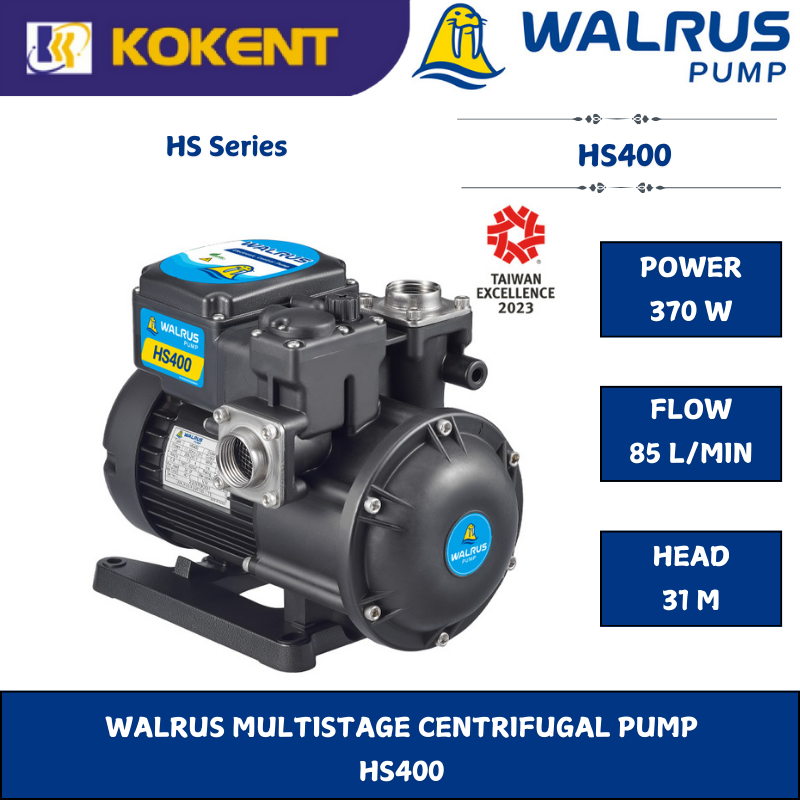

WALRUS MULTISTAGE CENTRIFUGAL PUMP HS400
Multistage Centrifugal Pump
HS Series
Show Model No. | HS400，
The HS series are multistage centrifugal pumps suitable for pressure boosting applications such as increasing water pressure from city mains or private water systems. They are also suitable for other applications such as: - Water circulation - Liquid transfer - Irrigation systems - Lawn sprinkle systems - Washing systems - General purpose pumping
Applicable Industries
Construction Industry
Agriculture & Fishing Industry
Manufacturing Industry
Electricity & New Energy Industry
Entertainment & Leisure Industry
Accommodation & Food Service Industry
Wholesale & Retail Trade
Water Supply & Pollution Control
Service Industry
Product Feature
Multistage design provides steady, quiet and vibrationfree operation for years of trouble-free service.
Close coupled, space saving design provides easy installation.
All parts in contact with water are made from corrosion resistant materials.
The pump is installed with thermostat protection switch to protect against dry running. The pump will shut off when water temperature exceeds 130°F (55°C).
The motor has a built-in thermal overload to protect against high operating temperatures and over current.
The pumps will lift water up to 7.6m. with foot valve and pump suction piping filled with water
Operating Condition
Ambient temperature: Max. +40°C
Liquid temperature: +4°C ~ +40°C
System Pressure : Max. 8.5 kg/cm²
Specification, 50Hz
Compare Products
| Type | Power (kW) |
Phase (Ø) |
Volts (V) |
Ampere (A) |
Inlet (in.) |
Outlet (in.) |
H max (m) |
Q max (L/min) |
N.W. (kg) |
G.W. (kg) |
Maximum Pallet Amount |
| HS400 | 0.37 | 1 | 200-240 | 2.8 | 1" | 1" | 31 | 85 | 8.1 | 8.6 | 45 |
| HS800 | 0.75 | 1 | 200-240 | 4.5 | 1" | 1" | 31 | 85 | 10.1 | 10.9 | 36 |
Dimensions (mm)
