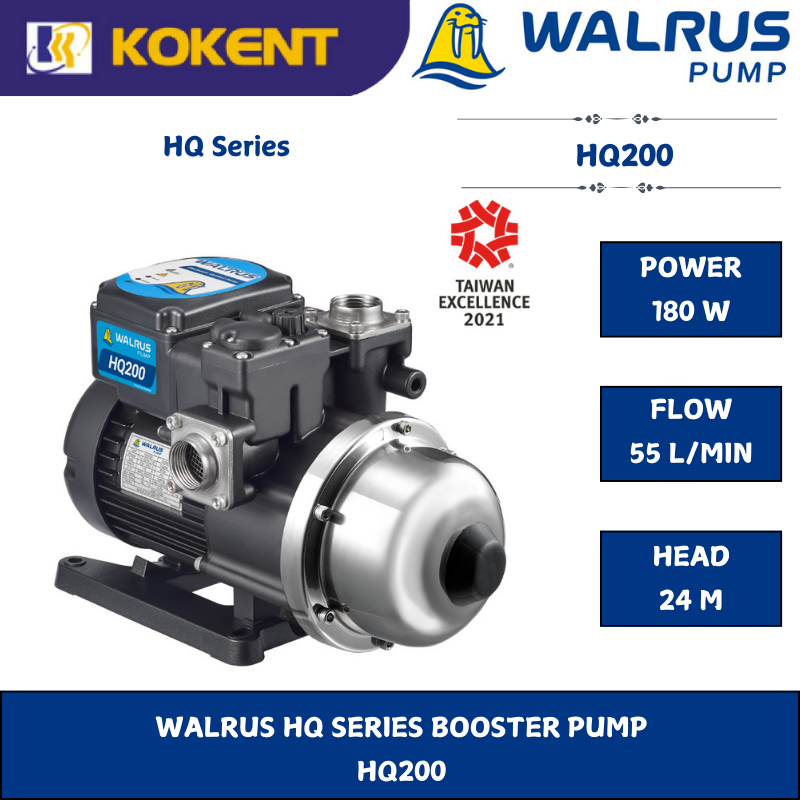

WALRUS HQ SERIES BOOSTER PUMP HQ200
Electronic Control Pump
HQ Series
Show Model No. | HQ200，
The HQ series pumps are designed for water supply and pressure boosting in residential, commercial and light industrial applications where low or inadequate water pressure exists. It is suitable for boosting pressure from underground or surface water supplies.
Applicable Industries
Construction Industry
Agriculture & Fishing Industry
Manufacturing Industry
Electricity & New Energy Industry
Entertainment & Leisure Industry
Accommodation & Food Service Industry
Wholesale & Retail Trade
Water Supply & Pollution Control
Service Industry
Suitable Liquids
Potable water or other clean, thin or non-aggressive liquids.
Product Feature
The HQ is a complete, all-in-one unit, consisting of pump, motor, pressure tank, and electronic controller. The built-in electronic controller provides constant pressure which ensures that the pump starts automatically when water is consumed and operates continuously until water is not required.
Compact design and quiet operation make the HQ series suitable for many applications. The HQ is constructed from the top quality corrosion resistant materials.
The HQ is constructed from the top quality corrosion resistant materials.
Pump has built in dry-run shut off with automatic reset function.
The motor has built-in thermal overload to protect against high operating temperatures and over current.
The HQ has an anti-cycling feature which prevents the pump from continuous starting and stopping when you have a dripping tap or minor leak in the system.
The pumps will lift water up to 7.6m. with foot valve and pump suction piping filled with water.
Operating Condition
Ambient temperature: Max. +40°C
Liquid temperature: +4°C ~ +40°C
System Pressure : Max. 8.5 kg/cm²
Relative humidity: Max. 85% (RH)
Under normal operation, it is not necessary to adjust the pressure unless the cut in pressure is higher than preset activation point (refer to specification).
Specification, 50Hz
Compare Products
| Type | Power (kW) |
Phase (Ø) |
Volts (V) |
Ampere (A) |
Inlet (in.) |
Outlet (in.) |
Preset Activation (kg/cm²) |
H max (m) |
Q max (L/min) |
N.W. (kg) |
G.W. (kg) |
Maximum Pallet Amount |
| HQ200 | 0.18 | 1 | 200-240 | 1.5 | 1" | 1" | 1.6 | 24 | 55 | 7.4 | 8.0 | 36 |
| HQ400 | 0.37 | 1 | 200-240 | 2.8 | 1" | 1" | 2.0 | 31 | 85 | 8.4 | 9.0 | 36 |
| HQ800 | 0.75 | 1 | 200-240 | 4.5 | 1" | 1" | 2.0 | 33 | 110 | 10.8 | 11.4 | 36 |
