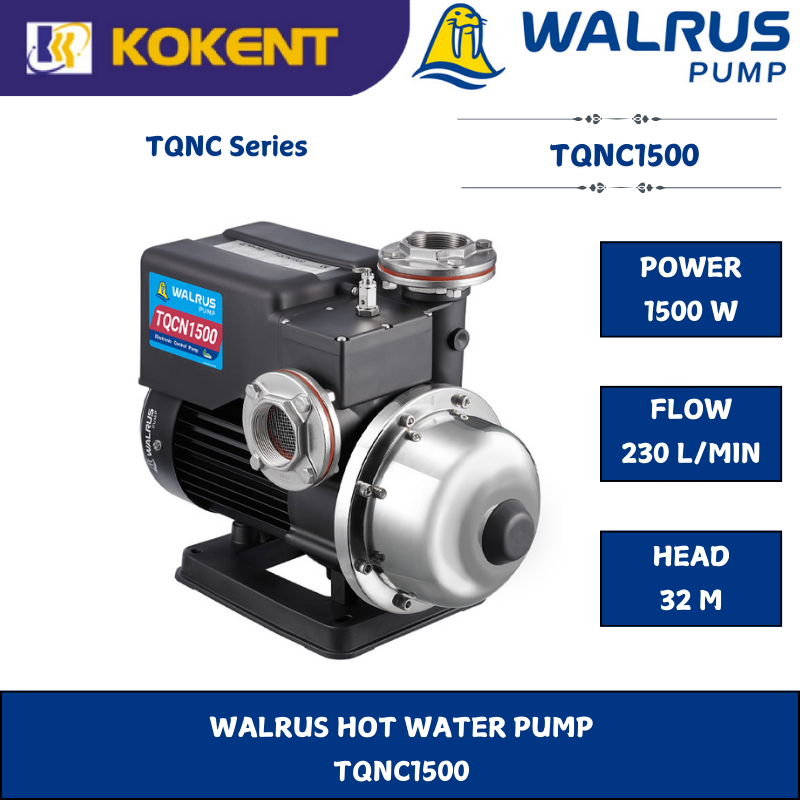

WALRUS HOT WATER PUMP TQNC1500
Hot Water Pump
TQCN Series
Show Model No. | TQCN1500
This TQCN series are designed for hot water supply (up to +90C) and pressure boosting in residential and commercial applications. They are suitable for solar energy hot water system or other types f hot water systems
Applicable Industries
Construction Industry
Agriculture & Fishing Industry
Manufacturing Industry
Electricity & New Energy Industry
Entertainment & Leisure Industry
Accommodation & Food Service Industry
Wholesale & Retail Trade
Water Supply & Pollution Control
Service Industry
Product Feature
The TQCN is a complete, all-in-one unit, consisting of pump, motor, pressure tank, and electronic controller. The built-in electronic controller provides constant pressure which ensures that the pump starts automatically when water is consumed and operates continuously until water is not required.
Compact design and quiet operation make the TQCN series suitable for many applications.
The TQCN is constructed from the top quality corrosion resistant materials.
The motor has built-in thermal overload to protect against high operating temperatures and over current.
The TQCN has an anti-cycling feature which prevents the pump from continuous starting and stopping when you have a dripping tap or minor leak in the system.
Relief value will automatically release the pressure when the TQCN full system pressure exceeds 5kg/cm².
Operating Condition
Ambient temperature：Max. +40°C
Liquid temperature：+4°C~+90°C
Relief pressure value automatically：Max. 5 kg/cm²
Relative Humidity：Max. 85%(RH)
Before using the pump, be sure the inlet pressure setting is lower than factory pressure setting
Specification, 50Hz
Compare Products
| Type | Power (kW) |
Phase (Ø) |
Volts (V) |
Ampere (A) |
Inlet (in.) |
Outlet (in.) |
Preset Activation (kg/cm²) |
Maximum Head (M) |
Maximum Capacity (L/min) |
N.W. (kg) |
| TQCN200 | 0.18 | 1 | 200~240 | 1.5 | 1" | 1" | 1.2 | 22 | 45 | 7.4 |
| TQCN400 | 0.37 | 1 | 200~240 | 3 | 1" | 1" | 1.8 | 30 | 75 | 9.4 |
| TQCN800 | 0.75 | 1 | 200~240 | 4.4 | 1" | 1" | 2.0 | 35 | 95 | 11 |
| TQCN1500 | 1.5 | 13 | 200~240200~240 | 7.25.8 | 2" | 2" | 2.5 | 32 | 230 | 28 |
| TQCN2200 | 2.2 | 13 | 200~240200~240 | 11.17.2 | 2" | 2" | 2.5 | 34 | 250 | 31 |
Dimensions (mm)
TQCN200/400/800
| Model | Cycle(Hz) | Dimensions (mm) | ||
| A | B | C | ||
| TQCN200 | 50 | 360 | 153 | 158 |
| 60 | 336 | 129 | 134 | |
| TQCN400 | 50 | 371 | 164 | 169 |
| 60 | 345 | 138 | 143 | |
| TQCN800 | 50 / 60 | 417 | 164 |
169 |
