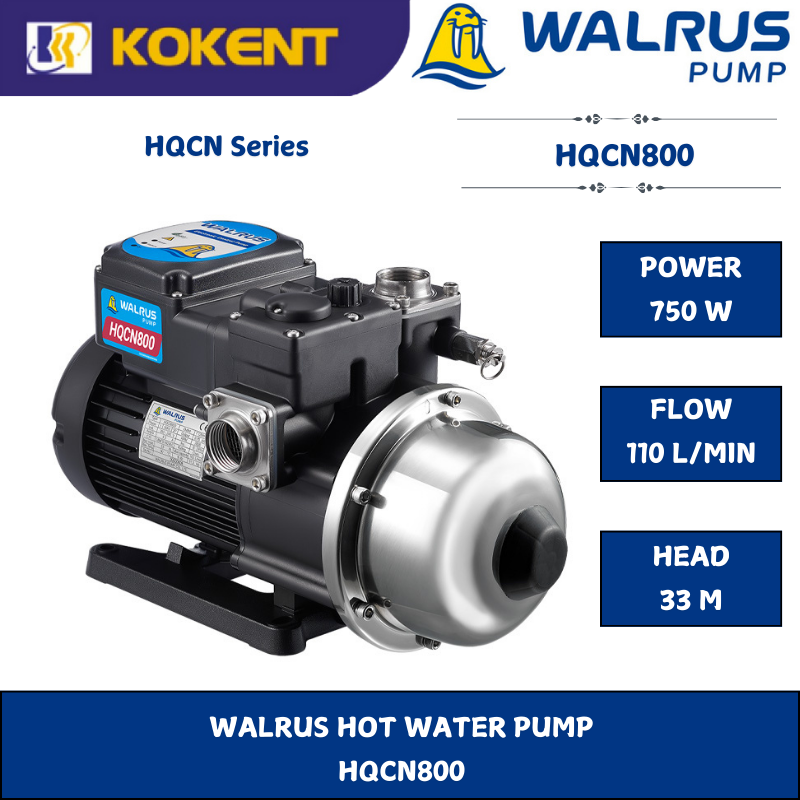

WALRUS HOT WATER PUMP HQCN800

Hot Water Pump

HQCN Series

Show Model No. | HQCN800，

List Price NT$ NTD

This HQCN Series are designed for hot water supply (up to +90°C)and pressure boosting in residential and commercial applications. They are suitable for solar energy hot water system or other types of hot water systems.

Applicable Industries

Construction Industry

Agriculture & Fishing Industry

Manufacturing Industry

Electricity & New Energy Industry

Entertainment & Leisure Industry

Accommodation & Food Service Industry

Wholesale & Retail Trade

Water Supply & Pollution Control

Service Industry

Product Feature

The HQCN is a complete, all-in-one unit, consisting of pump, motor, pressure tank, and electronic controller. The built-in electronic controller provides constant pressure which ensures that the pump starts automatically when water is consumed and operates continuously until water is not required.

Compact design and quiet operation make the HQCN series suitable for many applications.

The HQCN is constructed from the top quality corrosion resistant materials.

The motor has built-in thermal overload to protect against high operating temperatures and over current.

The HQCN has an anti-cycling feature which prevents the pump from continuous starting and stopping when you have a dripping tap or minor leak in the system.

Relief value will automatically release the pressure when the HQCN full system pressure exceeds 5kg/cm².

Operating Condition

Ambient temperature: Max. +40°C

Liquid temperature: +4°C ~ +90°C

Relief pressure value automatically : 5kg/cm²

Relative humidity: Max. 85% (RH)

Before using the pump, be sure the inlet pressure setting is lower than factory pressure setting.

Specification, 50Hz

Compare Products

Dimensions (mm)
