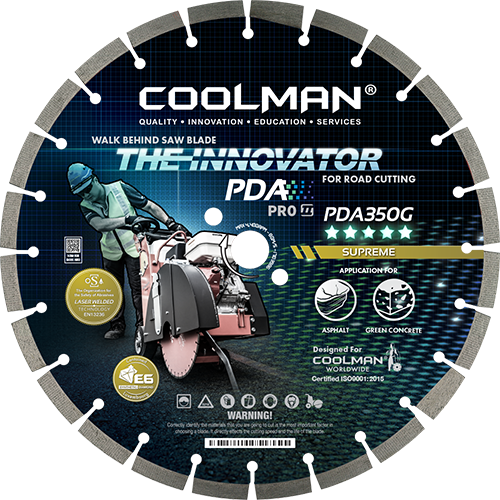

The PDA350G Asphalt Blade is a high performance blade designed to be used on both high and low horsepower walk behind saws. It is engineered with a high concentration of diamonds in the Proper Diamond Arrangement (PDA) for ultra long life. They are engineered with wedge segments and inserts which help remove debris, keep the blade cool, and provide undercut protection. This bond is formulated for use in aggregate of medium hardness.
Additional information
| BOND DESIGN |
Segmented |
|---|---|
| BORE DIAMETER |
25.4mm / 27mm |
| CHARACTERIZE |
Fast-Cut, More sharp, Stability, Superb Long Life, Superb Precise Cutting |
| CUT DEPTH |
4.75" / 120mm |
| APPLICATION MATERIAL |
Asphalt, Green Concrete, Premix |
| DIAMETER |
14" / 350mm |
| EQUIPMENT |
Walk Behind Saw Machine |
| GRADE |
Supreme |
| OPERATING MAX. SPEED |
4,400 RPM |
| OPERATING MIN. SPEED |
2,592 RPM |
| SEGMENT HEIGHT |
10mm |
| SEGMENT WIDTH |
3.2mm |
| USAGE |
Wet Cut |
| WELDING TECHNOLOGY |
Laser Welded |
