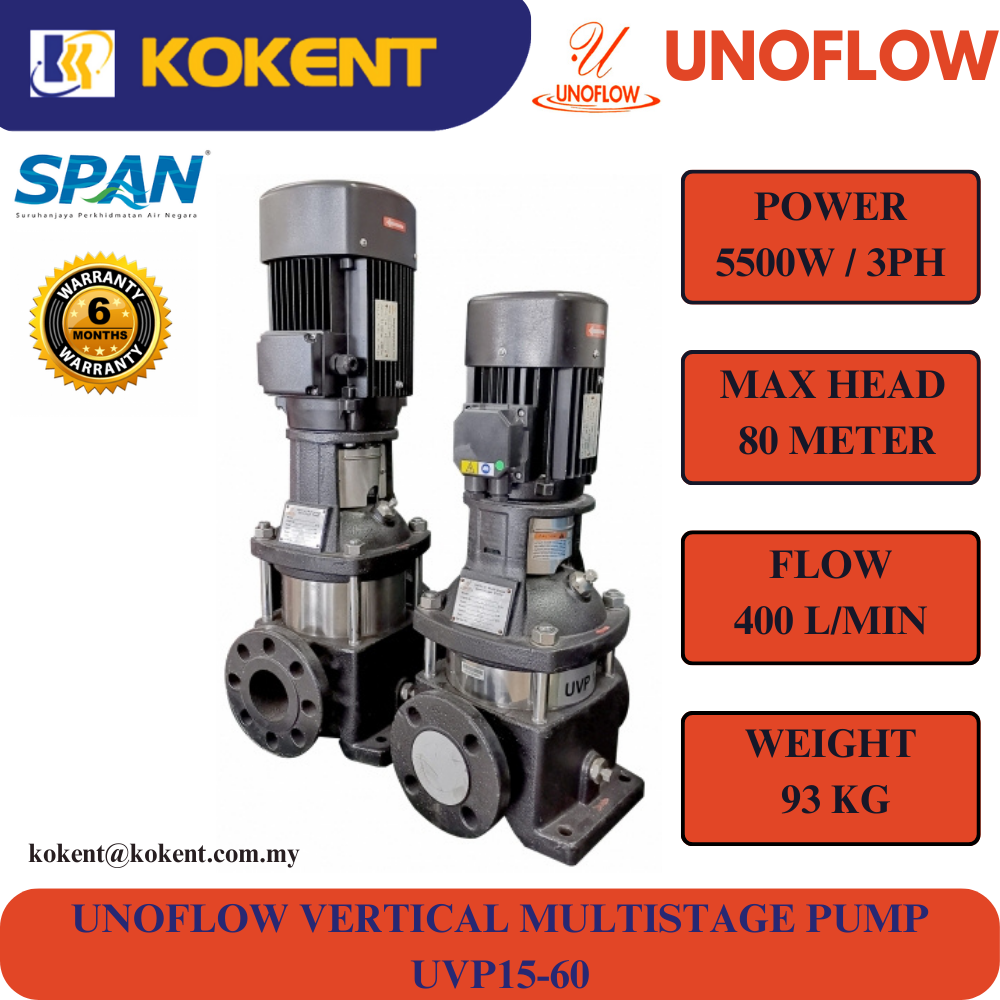

UNOFLOW VERTICAL MULTISTAGE WATER PUMP UVP15-60
UNOFLOW VERTICAL MULTISTAGE WATER PUMP UVP15-60

UNOFLOW VERTICAL MULTISTAGE WATER PUMP UVP15-60

Product Code: UVP15-60
Availability: Pre Order
Loading ...
017 432 8850012 387 8850
Share:

Description

Model: UVP15-60

Unoflow UVP15-60 vertical multistage centrifugal water pump.

  • 3 phase

Included Flange Assembly

  • Flange x 2pc
  • Rubber gasket x 2pc
  • Bolt and Nuts x 8sets

Features

  • Non-self priming vertical multistage centrifugal pump.
  • All pumps are equipped with a maintenance free mechanical seal set of the cartridge type.
  • Fan-cooled, 2-pole standard motor.
  • Motor protection
    a) Single phase: Built-in thermal overload switch.
    b) Three phase: Must be connected to a motor starter in accordance with local regulations.

Ambient temperature

  • up to +40 °C

Pump Material:

  • Cast iron Base
  • Stainless steel pump body

Applications

  • Distributions of water.
  • Pressure boosting in high-rise building and hotels.
  • Pressure boosting in fire fighting systems.
  • Aqua farming.
  • Boiler feed and condensate systems.
  • Oil and alcohol; Glycol and coolants.
  • Swimming pool.
  • Field irrigation, sprinkler irrigation, drip-feed irrigation.

Specifications

Size Discharge 2″ x 2″
Power 5500 W / Three phase
Flow Rate 133 ~ 400 L/min
Head 80 ~ 41 meters
Manometric Suction Lift Max. 7 meters
Liquid Temperature Max. +90°C
Environment Temperature Max. +40°C
Dimensions (L x W x H) 300mm x 275mm x 1017mm
Weight 93kg
