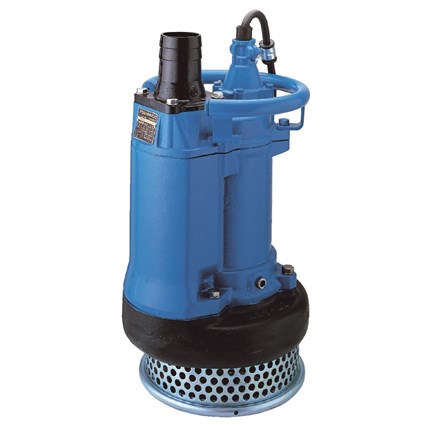

TSURUMI DEWATERING PUMP (3-PHASE) ENERGY SAVING KRS2-69
Product Code: KRS2-69
Availability: Pre Order
Dewatering Pumps (Energy Saving)
The KRS-series of energy-saving type is a submersible three-phase cast iron high volume heavy-duty drainage pump driven by a 4-pole motor. It consumes less energy than the standard KRS-series at lower head applications. The cast iron body, combined with the low speed motor, presents extra durability for use in the most demanding conditions. The top discharge, side flow design assures efficient motor cooling even when it operates with its motor exposed to air.
Performance Curves
Model Selection
| Discharge Bore (mm) |
Model | Motor Output (kW) |
Phase | Starting Method |
Solids Passage (mm) |
|---|---|---|---|---|---|
| 100 | KRS-43 | 3 | Three | D.O.L. | 12 |
| 150 | KRS-63 | 3 | Three | D.O.L. | 15 |
| 150 | KRS-65.5 | 5.5 | Three | D.O.L. | 20 |
| 150 | KRS2-69 | 9 | Three | D.O.L. | 20 |
| 200 | KRS-85.5 | 5.5 | Three | D.O.L. | 20 |
| 200 | KRS2-89 | 9 | Three | D.O.L. | 30 |
