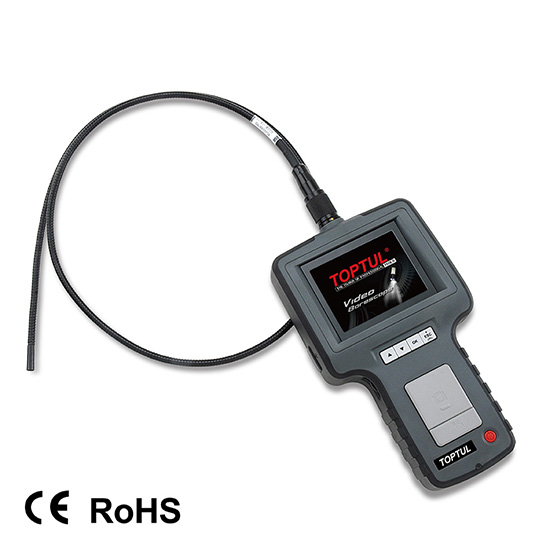

Toptul Portable Video Borescope

Product Code: VARF3901

Availability: In Stock

RM0.00

017 432 8850 012 387 8850

Description

Pick-Up & Inspection Tool

Portable Video Borescope

ITEM NO: VARF3901

Feature:
Multi-function keys selection
Working temperature of - 20°C to + 60°C
The probe can easily fits through the spark plug hole of engine
Water, oil, dust and scratch resistant probes (IP67)
Obedient probe that retains required shape
2.0 times digital zoom function
Horizontal picture reflection function
Live video and photo replay on TFT display
Snapshot and Video recording to SD card
Multi lingual menu

Contents:
Operation panel
1m semi-rigid spiral shaft camera probe
SD card
USB data cable
AV cable
AC Adapter

Application:
Automotive, aircraft, marine, locksmiths, electricians, law enforcement, mechanics, exterminator plumbers, welders, carpenters, HVAC repair & inspect all kinds of hard-to-reach areas.

Features

ITEM NO.	Probe Diameter (mm)	Probe Length (M)	Probe Type	Viewing Direction of the camera	Types of Plug Adapter (power charger)
VARF3901	Ø3.9	1	Semi-Rigid	Forward View	A. (US)	E. (EU)	Z. (AU/NZ)

Main System (Hand Held Unit)
Dimension	117.5 x 207 x 37mm
Display	3.5" (TFT LCD QVGA)
Video Out Format	NTSC & PAL
Video Out Interface	AV Out
Still Image Storage Format	JPEG (640x480 pixels)
Frame Rate	~30fps
Compression Format	MPEG4 (320x240 pixels)
Recording Medium	SD card up
Exposure	Automatic
White Balance	Fix
S / N Ratio	42dB or more
Power	Battery Rechargeable Li-Polymer Battery 3.7V Power Supply AC 100-240V / 50-60Hz Power Consumption DC5.5 1.8A
Working Time	4 hours
Recharge Time	2 hours
Working Temperature	-20°C~60°C
Language	English / Danish / French / Spanish / Russian / Dutch / Polish / Italian / German / Portuguese / Japanese / Bulgarian / Traditional Chinese / Simplified Chinese / Turkish / Swedish / Finnish / Norwegian / Estonian / Lithuanian / Latvian / Hungarian / Czech / Slovak / Slovene / Romanian / Greek

Camera System and Insert Tube
Camera Resolution	325(H) x 250(V) = 81250 pixels
Image Sensor	CMOS
Housing	Stainless Steel
Field of View (Aperture Angle)	Horizontal field angle 46° Vertical field angle 34° Diagonal field angle 56°
Focused Depth of Field	1cm~6cm
Protection Class	IP67
Resistance	DO NOT immerse the insert tube deeper than 1M depth and over 30 minutes.(water) DO NOT immerse the insert tube deeper than 6cm and over 10 minutes besides water.(such as lubricant oil, gasoline and etc.)
Working Temperature	0°C~55°C
Light Source	White LED
Bend Radius	min. 15mm
