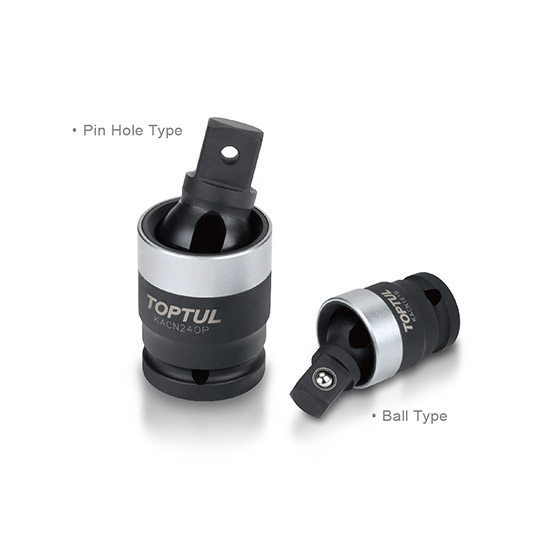

Toptul Impact Universal Joint

Product Code: KACN

Availability: In Stock

RM0.00

017 432 8850 012 387 8850

Description

Impact Universal Joint

ITEM NO: KACN series
Black Phosphate Finished
CR-MO
DIN 3121
ISO 1174
ASME B107.110
Provides 360 degrees of rotation at up to a 30 degree angle from vertical
Metal ring improves torque bearing capacity, durability and safety

Features

DRIVE	ITEM NO.	L (mm)	Dia. (mm)	Type	BOX (PCS)	CTN (PCS)
3/8" (10mm)	KACN120B	48	23.8	Ball	15	240
1/2" (12.5mm)	KACN160B	62	28.0	Ball	15	120
1/2" (12.5mm)	KACN161B	64	31.0	Ball	15	120
3/4" (20mm)	KACN240P	93	45.5	Pin Hole	4	40
1" (25mm)	KACN320P	110	54.0	Pin Hole	1	8
