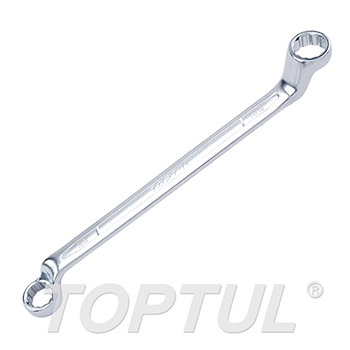

Toptul Double Ring Wrench 75° Offset - METRIC (Satin Chrome Finished)

Toptul Double Ring Wrench 75° Offset - METRIC (Satin Chrome Finished)
Toptul Double Ring Wrench 75° Offset - METRIC (Satin Chrome Finished)

Toptul Double Ring Wrench 75° Offset - METRIC (Satin Chrome Finished)

Product Code: AAEI
Availability: In Stock
RM0.00
Loading ...
Share:

Double Ring Wrench 75° OffsetDouble Ring Wrench 75° Offset - METRIC (Satin Chrome Finished)

Double Ring Wrench 75° Offset - METRIC (Satin Chrome Finished)


 ITEM NO: AAEI series
 Chrome Vanadium Steel Material
 75° offset ring end in design for convenient operation in recess
 High torque performance as over 1.6 times as ANSI & DIN standard
 Satin Chrome Finished
 METRIC



Features



ITEM NO. SIZE
(mm)
L
(mm)
B
(mm)
D
(mm)
S1
(mm)
S2
(mm)
BOX
(PCS)
CTN
(PCS)
Satin
• AAEIE507 5.5x7 167 10.5 12.8 5.3 6.0 10 240
AAEI0607 6x7 167 10.5 12.8 5.3 6.0 10 120
• AAEI0608 6x8 172 10.5 13.5 5.3 6.3 10 120
• AAEI0708 7x8 172 12.0 13.5 5.3 6.3 10 120
AAEI0809 8x9 182 13.5 15.0 6.3 7.0 10 120
AAEI0810 8x10 182 13.5 15.3 6.3 7.0 10 120
AAEI1011 10x11 197 16.5 18.0 7.3 8.5 10 80
AAEI1213 12x13 218 19.5 21.0 8.7 9.0 10 80
• AAEI1316 13x16 245 21.5 25.5 9.2 10.5 10 80
• AAEI1317 13x17 245 21.5 26.0 9.2 10.5 10 80
AAEI1415 14x15 238 22.0 23.5 9.0 9.5 10 80
• AAEI1417 14x17 245 22.0 26.0 9.2 10.5 10 80
AAEI1617 16x17 258 25.5 26.5 10.5 11.0 5 40
AAEI1618 16x18 258 25.5 27.2 10.5 11.0 5 40
AAEI1719 17x19 290 26.5 29.5 11.0 12.0 5 40
AAEI1819 18x19 290 27.3 29.5 11.0 12.0 5 40
AAEI1821 18x21 296 28.5 32.5 11.5 12.5 5 40
AAEI1922 19x22 296 29.0 33.7 11.5 12.5 5 40
AAEI2022 20x22 316 31.5 34.5 12.0 13.0 5 30
AAEI2123 21x23 316 32.0 35.0 12.0 13.0 5 30
AAEI2224 22x24 324 33.7 36.7 12.0 13.0 5 30
AAEI2426 24x26 328 37.2 40.5 12.5 14.1 5 30
AAEI2427 24x27 328 37.2 41.2 12.5 14.1 5 30
AAEI2528 25x28 345 39.5 43.0 13.5 14.5 5 30
AAEI2628 26x28 345 39.5 43.0 13.5 14.5 5 30
AAEI2729 27x29 353 41.5 45.5 14.1 15.5 2 12
AAEI2730 27x30 353 41.5 45.5 14.1 15.5 2 12
AAEI2732 27x32 353 41.5 46.2 14.1 15.5 2 12
AAEI3032 30x32 360 45.3 48.5 15.0 16.5 2 12
AAEI3034 30x34 402 45.5 51.5 17.0 19.0 2 12
• AAEI3036 30x36 402 45.5 53.7 17.0 19.0 2 12
AAEI3236 32x36 402 47.7 53.7 17.0 19.0 2 12
AAEI3436 34x36 440 51.5 54.5 18.0 20.0 2 12
• AAEI3538 35x38 440 53.0 57.5 18.0 20.0 2 12
AAEI3641 36x41 440 53.7 61.7 18.0 20.0 2 12
AAEI3842 38x42 440 53.7 61.7 18.0 20.0 2 12
AAEI4146 41x46 470 61.7 69.7 19.0 20.5 2 8
AAEI4650 46x50 510 70.5 76.5 20.5 21.5 2 8
