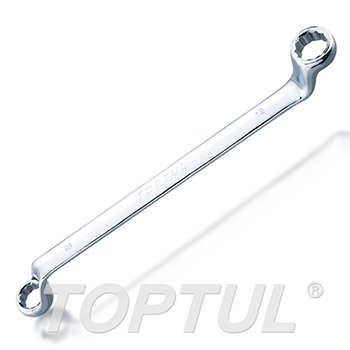

Toptul Double Ring Wrench 75° Offset - METRIC (Mirror Polished)

Product Code: Double Ring Wrench 75° Offset

Availability: In Stock

RM0.00

017 432 8850 012 387 8850

Description

Double Ring Wrench 75° Offset

Double Ring Wrench 75° Offset - METRIC (Mirror Polished)

ITEM NO: AAAI series
Chrome Vanadium Steel Material
75° offset ring end in design for convenient operation in recess
High torque performance as over 1.6 times as ANSI & DIN standard
Mirror Polished
METRIC

Features

ITEM NO.	SIZE (mm)	L (mm)	B (mm)	D (mm)	S1 (mm)	S2 (mm)	BOX (PCS)	CTN (PCS)
Mirror	SIZE (mm)	L (mm)	B (mm)	D (mm)	S1 (mm)	S2 (mm)	BOX (PCS)	CTN (PCS)
AAAIE507	5.5x7	167	10.5	12.8	5.3	6.0	10	240
AAAI0608	6x8	172	10.5	13.5	5.3	6.3	10	120
AAAI0708	7x8	172	12.0	13.5	5.3	6.3	10	120
AAAI0809	8x9	182	13.5	15.0	6.3	7.0	10	120
AAAI0810	8x10	182	13.5	15.3	6.3	7.0	10	120
AAAI1013	10x13	217	16.5	21.0	8.7	9.0	10	80
AAAI1113	11x13	217	18.0	21.0	8.7	9.0	10	80
AAAI1315	13x15	238	21.0	23.5	9.0	9.5	10	80
AAAI1415	14x15	238	22.0	23.5	9.0	9.5	10	80
AAAI1316	13x16	245	21.5	25.5	9.2	10.5	10	80
AAAI1417	14x17	245	22.0	26.0	9.2	10.5	10	80
AAAI1819	18x19	290	27.3	29.5	11.0	12.0	5	40
AAAI1821	18x21	296	28.5	32.5	11.5	12.5	5	40
AAAI2022	20x22	316	31.5	34.5	12.0	13.0	5	30
AAAI2224	22x24	324	33.7	36.7	12.0	13.0	5	30
AAAI2426	24x26	328	37.2	40.5	12.5	14.1	5	30
AAAI2528	25x28	345	39.5	43.0	13.5	14.5	5	30
AAAI2732	27x32	353	41.5	46.2	14.1	15.5	2	12
