Toptul Double Ring Wrench 45° Offset - METRIC (Satin Chrome Finished)

Product Code: AAEH

Availability: In Stock

RM0.00

017 432 8850 012 387 8850

Description

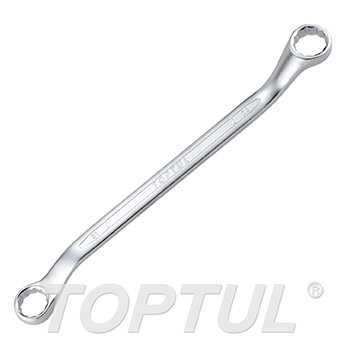

Double Ring Wrench 45° Offset

Double Ring Wrench 45° Offset - METRIC (Satin Chrome Finished)

ITEM NO: AAEH series
Chrome Vanadium Steel Material
45° offset ring end in design for convenient operation in recess
Professional quality for maximum durability and corrosion resistance
Satin Chrome Finished
METRIC

Features

ITEM NO.	SIZE (mm)	L (mm)	B (mm)	D (mm)	S1 (mm)	S2 (mm)	BOX (PCS)	CTN (PCS)
Satin	SIZE (mm)	L (mm)	B (mm)	D (mm)	S1 (mm)	S2 (mm)	BOX (PCS)	CTN (PCS)
AAEH0607	6x7	165	10.3	12.0	5.2	5.7	10	240
• AAEH0608	6x8	165	10.3	12.7	5.2	5.7	10	240
• AAEH0708	7x8	165	10.3	12.7	5.2	5.7	10	240
AAEH0809	8x9	170	13.5	15.0	5.7	6.2	10	240
AAEH0810	8x10	170	13.5	16.2	5.7	6.2	10	240
AAEH1011	10x11	180	15.2	17.2	6.2	6.7	10	120
AAEH1012	10x12	195	16.5	18.9	6.7	7.2	10	120
• AAEH1113	11x13	206	18.0	21.0	7.7	8.2	10	80
AAEH1213	12x13	206	19.5	21.0	7.7	8.2	10	80
AAEH1214	12x14	206	19.5	21.7	7.7	8.2	10	80
AAEH1415	14x15	232	21.7	23.5	8.2	8.7	10	80
• AAEH1317	13x17	237	21.0	25.7	9.2	9.7	10	80
AAEH1417	14x17	237	22.5	25.7	9.2	9.7	10	80
AAEH1617	16x17	237	23.7	25.7	9.2	9.7	10	80
AAEH1719	17x19	270	26.5	29.2	10.7	11.2	10	80
AAEH1819	18x19	270	27.7	29.2	10.7	11.2	10	80
• AAEH1921	19x21	292	28.7	32.2	11.4	11.9	5	30
• AAEH1922	19x22	292	28.7	32.2	11.4	11.9	5	30
AAEH2022	20x22	292	28.7	32.2	11.4	11.9	5	30
AAEH2123	21x23	327	32.2	34.2	11.9	12.7	5	30
AAEH2224	22x24	327	32.2	34.2	11.9	12.7	5	30
• AAEH2326	23x26	362	34.7	38.2	13.2	13.7	5	30
AAEH2426	24x26	362	34.7	38.2	13.2	13.7	5	30
AAEH2427	24x27	362	34.7	38.2	13.2	13.7	5	30
AAEH2528	25x28	372	39.5	42.1	13.2	14.7	5	30
AAEH2628	26x28	372	39.5	42.1	13.2	14.7	5	30
• AAEH2629	26x29	372	39.5	42.1	13.2	14.7	5	30
• AAEH2729	27x29	380	40.7	45.5	14.7	15.7	5	30
• AAEH2730	27x30	380	40.7	45.5	14.7	15.7	5	30
• AAEH2732	27x32	380	40.7	45.7	14.7	15.7	5	30
AAEH3032	30x32	392	44.7	48.5	16.2	17.7	2	12
• AAEH3034	30x34	402	45.5	51.5	16.5	19.2	2	12
• AAEH3236	32x36	402	48.5	54.5	17.2	19.2	2	12
• AAEH3436	34x36	440	54.5	62.5	18.2	20.2	2	12
• AAEH3641	36x41	440	54.5	62.5	18.2	20.2	2	12
• AAEH3842	38x42	440	54.7	62.7	18.2	20.2	2	12
• AAEH4146	41x46	470	61.7	69.7	19.2	20.7	2	8
• AAEH4650	46x50	510	70.5	76.5	20.7	21.7	2	8
• AAEH5560	55x60	610	83.7	91.7	22.7	23.7	2	4
