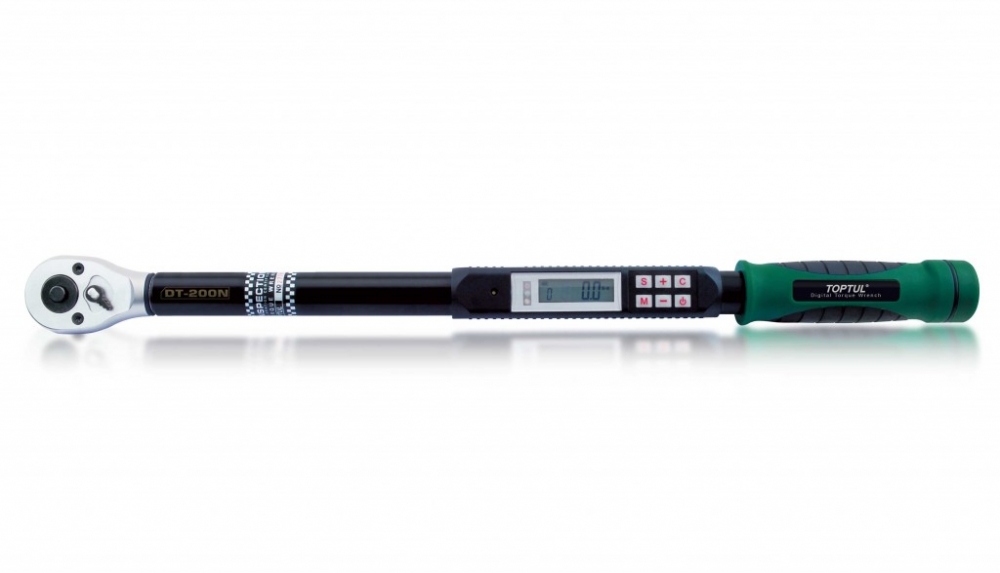

Toptul Digital Torque Wrench

Product Code: DT-030N / DT-100N / DT-200N

Availability: In Stock

RM0.00

017 432 8850 012 387 8850

Description

Torque Wrenches

Digital Torque Wrench

ITEM NO: DT-030N / DT-100N / DT-200N
Torque Accuracy: CW ±1% & CCW ±1.5 % tolerance of the set scale value
Precise reading accuracy for a minimum 5,000 tightening cycles
Operating Mode: Peak hold mode (peak value detection) / Track mode (continuous display)
Torque Unit Selection: Nm, Ft-Lb, In-Lb, Kg-m
Storage Memory: 10 Readings
Three way lights and buzzer when torque value is reached
Low battery indicator and auto shut off (after 65 seconds)
3 Position, 32 Teeth Ratcheting Mechanism: Clockwise / Fixed / Counterclockwise
Ergonomically designed bi-component soft grip handle
Tested and certified according to DIN EN ISO 6789, BS EN 26789

Features

Torque Accuracy	CW ±1% / CCW ±1.5%
Storage Memory	10 Readings
Torque Unit Selection	Nm, Ft-Lb, In-Lb, Kg-m
Display Resolution	0.01 Nm, 0.01 Ft-Lb, 0.1 In-Lb, 0.01 Kg-m (DT-030N) 0.1 Nm, 0.1 Ft-Lb, 1 In-Lb, 0.01 Kg-m (DT-100N, DT-200N)
Operating Mode	Peak Hold Mode / Track Mode
Gear Teeth	32 Precision Teeth
Ratcheting Mechanism	Clockwise / Fixed / Counterclockwise
Working Temperature	-10˚C ~ 55˚C
Storage Temperature	-40˚C ~ 85˚C
Humidity	0 ~ 90%
Battery	1.5V AAA x 3pcs (DT-030N) 1.5V AA x 3pcs (DT-100N, DT-200N)
Battery Life	200 Hours
Auto Shut Off	65 Seconds (when not use)

ITEM NO.	DRIVE	Torque Range				L (mm)	CTN (PCS)
ITEM NO.	DRIVE	(Nm)	(Ft-Lb)	(In-Lb)	(Kg-m)	L (mm)	CTN (PCS)
DT-030N	1/4"	3.00~30.00	2.21~22.13	26.5~265.5	0.30~3.05	359	12
DT-100N	3/8"	10.0~100.0	7.3~73.7	88~885	1.02~10.20	440	12
DT-200N	1/2"	20.0~200.0	14.7~147.5	176~1769	2.03~20.38	530	6
