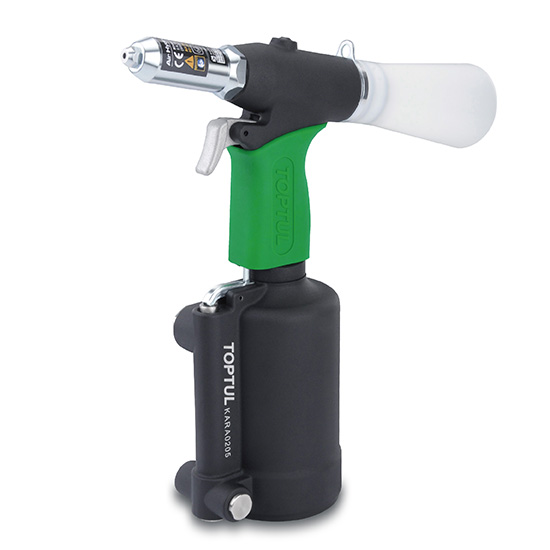

Toptul Air Hydraulic Riveter

Toptul Air Hydraulic Riveter
Toptul Air Hydraulic Riveter

Toptul Air Hydraulic Riveter

Product Code: KARA0205
Availability: In Stock
RM0.00
Loading ...
Share:

Air Hydraulic Riveter

Air Hydraulic Riveter

Air Hydraulic RiveterAir Hydraulic RiveterAir Hydraulic Riveter

Air Hydraulic Riveter


 ITEM NO: KARA0205
 Suitable for aluminum/steel & stainless steel rivets
 Designed for professional riveting and continuous operation
 Twin air inlet design allows easy operation by right-handed or left-handed users
 New spent mandrel container to protect operator's eyes and keep working places clean
 Shock-reducer design to minimize hand fatigue
 Noise silencer design for working pleasure
 Smart nosepieces storage design to avoid losing nosepieces
 Oil refill hole design for quickly refilling the shortage of hydraulic oil
 Set includes rivet mandrel collector, two combination wrenches, brush, hydraulic oil injector without oil and one set of extra jaws


Rivet Diameter Rivet Material
Aluminum Steel Stainless Steel (Inox)
2.4mm or 3/32"
3.0/3.2mm or 1/8"
4.0mm or 5/32"
4.8/5.0mm or 3/16"

Features



ITEM NO.
  KARA0205
SPECIFICATIONS CTN: 10
Rivet Diameter 2.4, 3.0/3.2, 4.0, 4.8/5.0 mm or 3/32", 1/8", 5/32", 3/16"
Stroke Length 18mm
Traction Power 9000 N / 2000 lbf
Air Pressure 80~95 PSI (5.5~6.5 BAR)
Air Consumption Per Rivet 2.5 CFM
Air Inlet 1/4" PT
Min. Air Hose  5/16" I.D.
Overall Length 10-5/8" / 270mm
Net Weight 3.92 lbs / 1.78kgs
