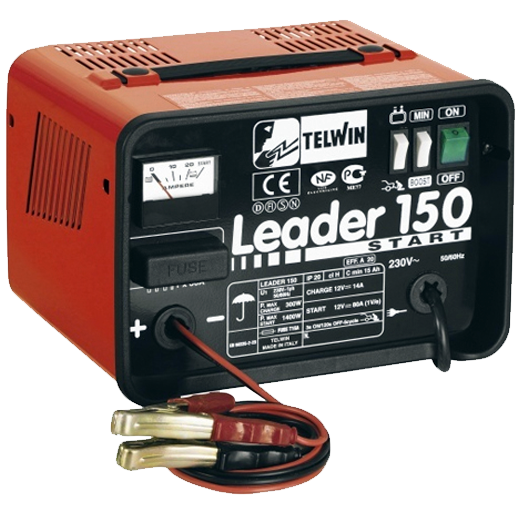

TELWIN Battery Charger 300-1400W, 12V Battery, 6.6kg Leader150

TELWIN Battery Charger 300-1400W, 12V Battery, 6.6kg Leader150
TELWIN Battery Charger 300-1400W, 12V Battery, 6.6kg Leader150

TELWIN Battery Charger 300-1400W, 12V Battery, 6.6kg Leader150

Product Code: Leader 150 Start
Availability: Pre Order
Loading ...
Share:

Model: Leader 150 Start

Features

  • Protected against overloading and reverse polarity
  • Selector switch for normal charge or fast charge (boost)
  • These chargers are equipped with a quick start function
  • Shows the charging and starting current
  • For a maximum starting current, the battery can first be charged for 5-10 minutes with fast charge (boost). The unit is then switched back to "start" in order to start the vehicle.

Technical Information

  • Single-phase, portable battery chargers for charging lead accumulators
  • With toggle switch for normal and fast charge (boost), quick start
  • Equipped with protection against overloading and reverse polarity
  • With ampere meter for charging and starting current
  • Multiple charge current settings
  • Mains voltage 230 V

Applications

  • For charging 12 V batteries
  • Protected against overloading and reverse polarity
  • Selector switch for normal charge or fast charge (boost)
  • These chargers are equipped with a quick start function
  • Shows the charging and starting current
  • For a maximum starting current, the battery can first be charged for 5-10 minutes with fast charge (boost).
  • The unit is then switched back to "start" in order to start the vehicle.

Specifications

Voltage   230V (Single phase)
Power Input    300 W - 1400 W
Voltage (Laadspanning)   12 V
Charge Current (Laadstroom)   20 A
Start Maximum 140 A
Rated Reference Capacity (Min./Max.)   25/250 A
Dimensions (L x W x H) 225mm x 290mm x 205mm
Weight 6.6 kg
Display of Charging and Starting Current   2
Suited for Lead Battery Yes

Standard Accessories

  • Clamps
