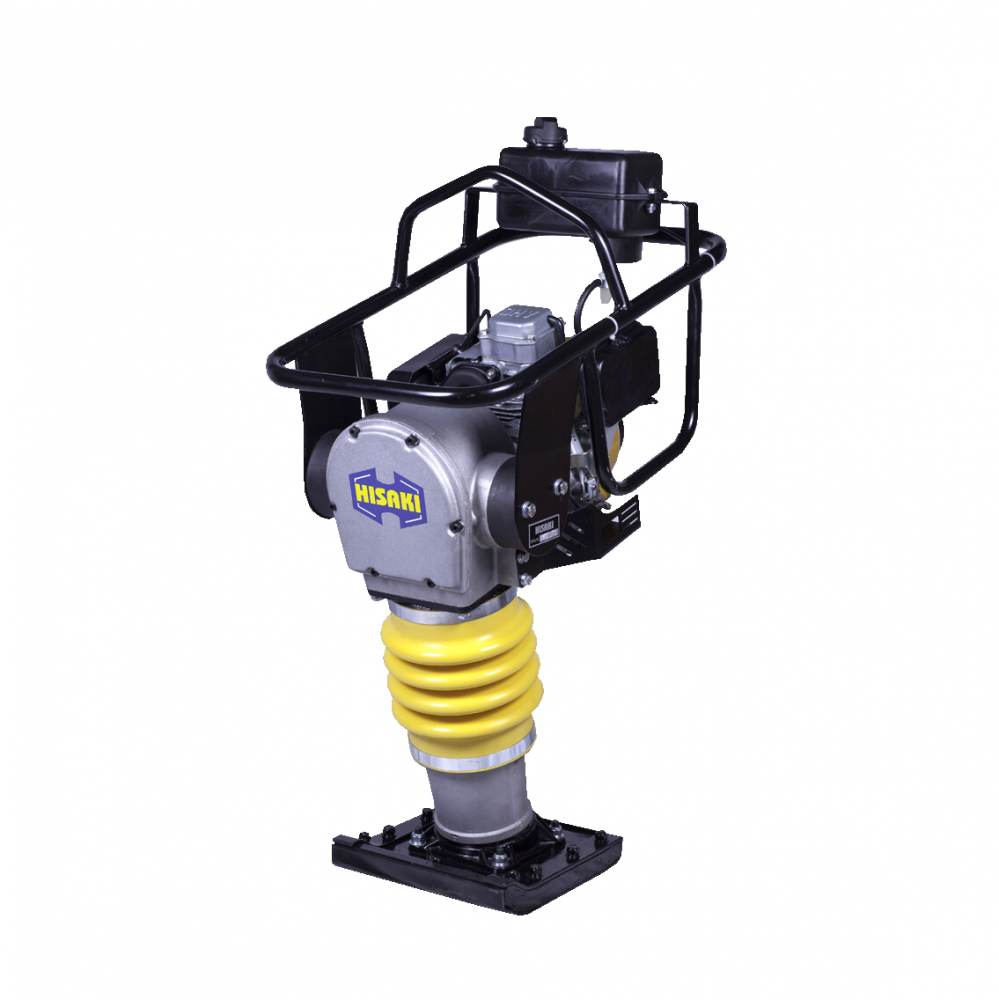

TAMPING RAMMER YTR81

    TAMPING RAMMER YTR81

    Product Code: TAMPING RAMMER YTR81
    Availability: Pre Order
    Loading ...
    017 432 8850012 387 8850
    Share:
    SPECIFICATIONS
    Model YTR81 YTR82
    Weight (kg) 81 90
    Shoe Size L x W 324 x 300 330 x 300
    Vibrating Frequency (vpm) 645 - 695 570 ~ 600
    Vibration Stroke (mm) 50 - 80 45 ~ 55
    Impact Force (kgf) 1100 - 1300 1200
    Engine Gasoline 5 hp / 3600 rpm Gasoline 5 hp / 3600 rpm
    Max. Output (hp/rpm) 4.0/4000 4.0/4000



    FEATURES YTR81
    • Heavy duty shock absorber to absorb kickback
    • Heavy shock absorber to reduce hard-arm vibration and improve operator’s comfort
    • Oil bath lubrication system
    • With yellow bellow
    • Rammer shoe made of steel plate with wooden insert offers economical usage. Steel made fuel tank to prevent easy damaged
    • Protective top frame cover eliminates possible damage to the engine

    FEATURES YTR82
    • Strong casting body to increase durability
    • Heavy duty shock absorber to absorb kickback
    • Heavy shock absorber to reduce hard-arm vibration and improve operator’s comfort
    • Grease lubrication system
    • Rammer shoe made of steel plate with wooden insert offers economical usage
    • With yellow bellow
    • Steel made fuel tank to prevent easy damaged
    • Protective top frame cover eliminates possible damage to the engine
