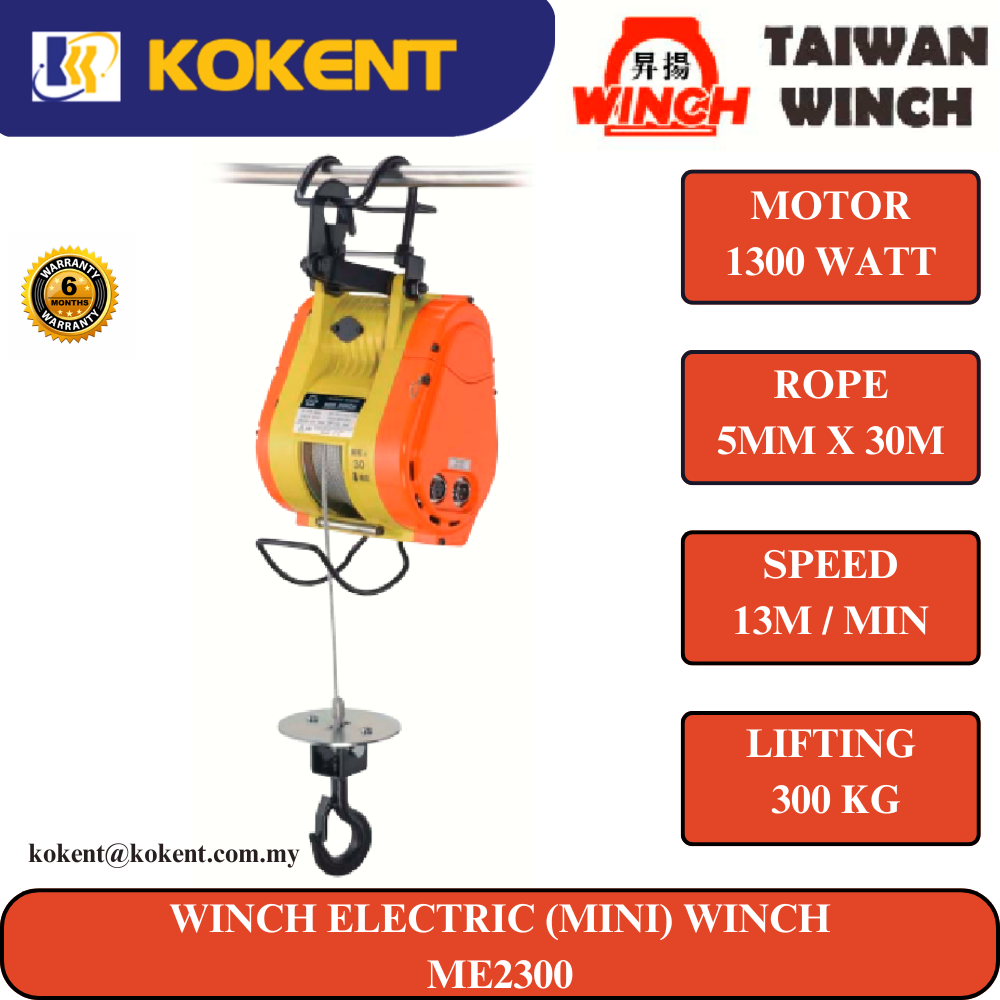

TAIWAN WINCH ELECTRIC (MINI) WINCH ME2300-13C30

Product Code: ME2300-13C30

Availability: Pre Order

ME SERIES

Features:

Light weight & compact design allows mounting convenient.
Equipped with magnetic contactor to avoid voltage drop, while ensuring powerful lifting.
When rope touches the limit arm, hoisting is automatically stopped.
A sensor arm stops the motor when the rope is reverse winding.
Dynamic brake designs for both static and dynamic loading.
Separated quick connection for convenience.
360° universal joint saddle hook with safety latch
Emergency stop function switch is available upon request

Model	ME-2085-28A50	ME-2170-21B30	ME-2200-21C30	ME-2230-15C30	ME-2260-15C30	ME-2300-13C30	ME-2360-21D40	ME-2500-13E30
Rated Lifting capacity	85kg	170kg	200kg	230kg	260kg	300kg	360kg	500kg
Speed	28M/min	21M/min	21M/min	15M/min	15M/min	13M/min	21M/min	13M/min
Power consumption	1000W	1200W	1300W	1200W	1300W	1500W	2000W	2000W
Power source (Single phase)	1PH 220V, 50/60Hz
Rated power source	5A	6A	7A	6A	7A	7.5A	9A	9A
Rated reciprocation	30% ED, 150 time/hour						30% ED, 150 time/hour
Packing (LxWxH)	427X245X345mm						520X300X400mm
N.W. (kg)	19						36
G.W. (kg)	20						38
Accessories
Steel rope	Ø3mmx50M	Ø4mmx30M	Ø5mmx30M	Ø5mmx30M	Ø5mmx30M	Ø5mmx30M	Ø6mmx40M	Ø7mmx30M
Weight hook	MH-100
Power Wire	5M
Operational cable	10M
Control switch	2-button switch
