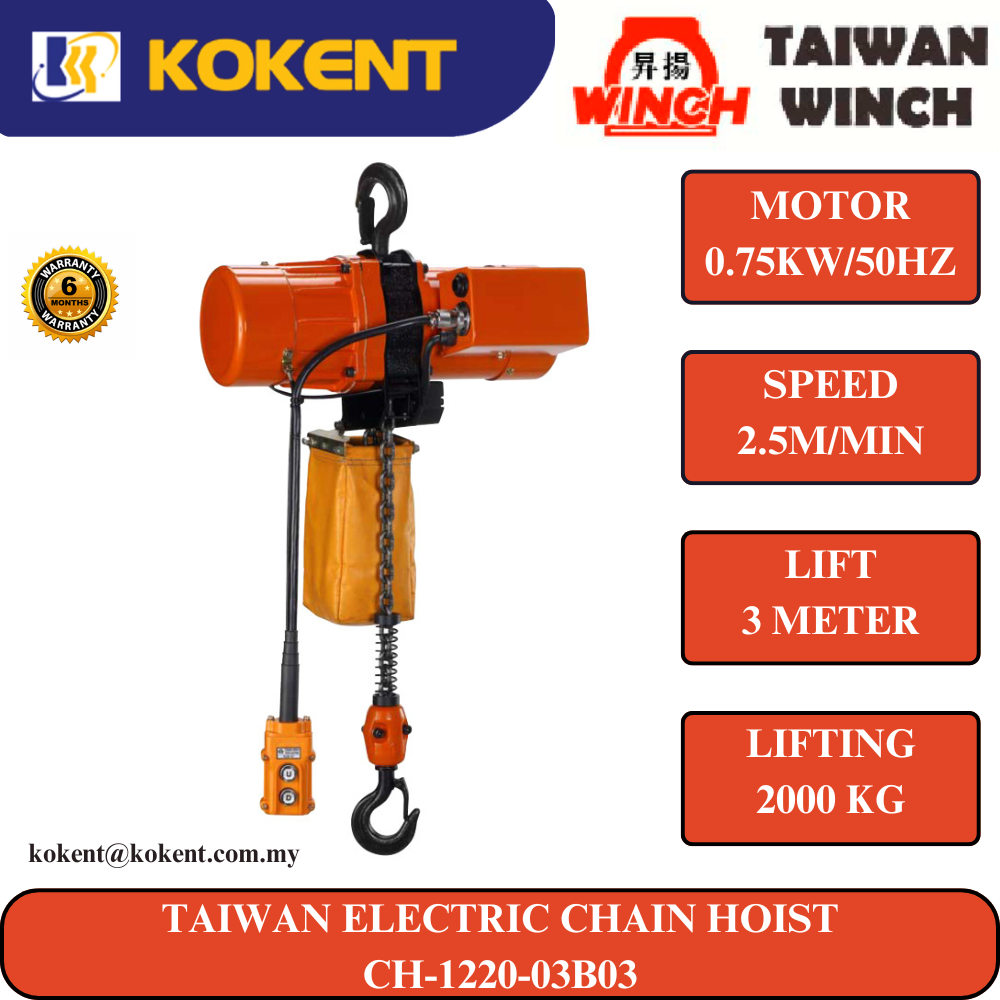

TAIWAN WINCH ELECTRIC CHAIN HOIST CH-1220-03B3

Product Code: CH-1220-03B3

Availability: Pre Order

Features:

Employs imported FEC80 class high strength heat treated alloy steel chain.
LIMIT SWITCH POSITIONS: Limit switches are provided at lift-up and down stroke to prevent poor smoothness of chain or loosening while ensuring safety.
Equipped with magnetic contactor to avoid voltage drop, while ensuring powerful lifting.
24V LOW VOLTAGE DEVICE: In case electric shock from swith, the low voltage device may avoid accident.
Specially designed DC magnetic brake.
Upon request, additional electronic overload protector and emergency stop switch.
In case of power failure, the DC magnetic brake actuates immediately.
Emergency stop function switch is available upon request

Model		CH-1102-10A03	CH-1105-06A03	CH-1105-10A03	CH-1110-06B03	CH-1220-03B03	CH-3120-06C03
Capacity (KGS)		250	500	500	1000	2000	2000
Lift (M)		3
Hoisting Speed (M/min)	50HZ	8.9	5	8.9	5	2.5	5.7
Hoisting Speed (M/min)	60HZ	10.7	6.1	10.7	6.1	3	6.9
Hosting Motor (KW)		0.55	0.55	0.75	0.75	0.75	3.7
Chain dia x Pitch		FEC Ø6.3X19 Pitch			FEC Ø7.1X21 Pitch		FEC Ø10.0X30 Pitch
Chain Falls Line		1				2	1
Power Source		1PH 220V~240V					3PH 220V~440V
Approx Weight (KG)		34	34	34	35	44	83
Approx. Dimensions(mm)	A	235	235	235	235	235	300
	B	119	119	119	119	119	159
	C	445	445	460	460	460	592
	D	231	231	246	246	246	314
	E	520	520	520	520	520	575
	F	31	31	31	31	31	38
	G	42.5	42.5	42.5	42.5	42.5	65
	H	85	85	85	85	85	129
	I	31	31	31	31	31	38
	J	20	20	20	20	20	31
	B1	116	116	116	116	116	141
	D1	214	214	214	214	214	278
