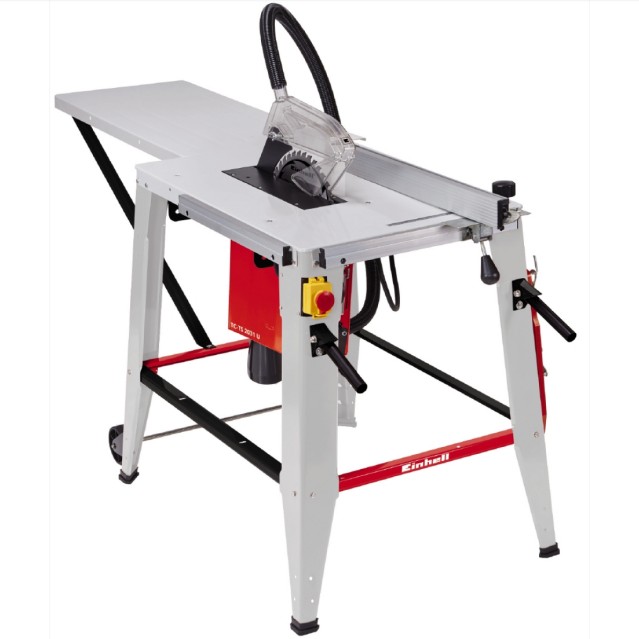

EINHELL Table Saw TC-TS 2031 U
Table Saw TC-TS 2031 U
The Einhell TC-TS 2031 U bench-type circular saw is a solid basic machine for the ambitious hobby DIY enthusiast.
This circular saw is an allrounder for rough and fine jobs in connection with hobbies and also for projects throughout the house and garden.
With a powerful 2,000 W rating, this bench-type circular saw overcomes the resistance of larger workpieces and hardwood.
An overload switch protects the motor from damage caused by overloading and overheating.
The large work table measures 550 x 800 millimeters.
For long workpieces the table can be extended at the back.
The saw blade on the TC-TS 2031 U can be adjusted up to 45° with the angle stop for miter cuts.
Flexible height adjustment using a scale is also possible on this bench-type circular saw.
A parallel stop provides the hobby DIY enthusiast with help on precise edging cuts.
For safety and a direct view of the cut there is a transparent saw blade guard.
There is a push stick for working in safety.
Integrated handles and wheels enable the bench-type circular saw to be moved about easily.
The product is supplied complete with a tool for easy removal/fitting of the blade.
Features:
1. Table extension for long workpiece cross-sections
2. Transparent blade guard with direct view of the cut
3. Handles and wheels to enable the device to be moved about easily
4. Blade can be adjusted by up to 45° for miter cuts
5. Height-adjustable blade with scale
6. Parallel stop for edging cuts
7. Angle stop between 0° and 45° for miter cuts
8. Overload switch for protecting the motor from damage
9. Push stick for working in safety
10. Tool for easy removal/fitting of the blade
Technical Spec
MODEL | TC-TS 2031 U |
---|---|
Mains supply | 230 V | 50 Hz |
Max. power (S2 | S2time) | 2000 W | 20 min |
Idle speed | 2950 min^-1 |
Saw blade | 315 mm x 30 mm |
Number of saw teeth | 40 Pieces |
Swiveling range of saw blade | 45 ° |
Max. cutting height at 45° | 52 mm |
Max. cutting height at 90° | 85 mm |
Height adjustment continuous | 0-85 mm |
Diameter of suction adapter | 96 mm |
Working height | 810 mm |
Size of working table | 800 mm x 550 mm |
Table length extension back side | 800 mm x 400 mm |
