Swan Petrol Engine Air Compressor HVU-203E(B&S): 6.5HP, 12Bar, FAD270L/min, 960rpm,
Product Code: HVU-203E(B&S)
Availability: Pre Order
Description
Model: HVU-203E (B&S Petrol Engine)

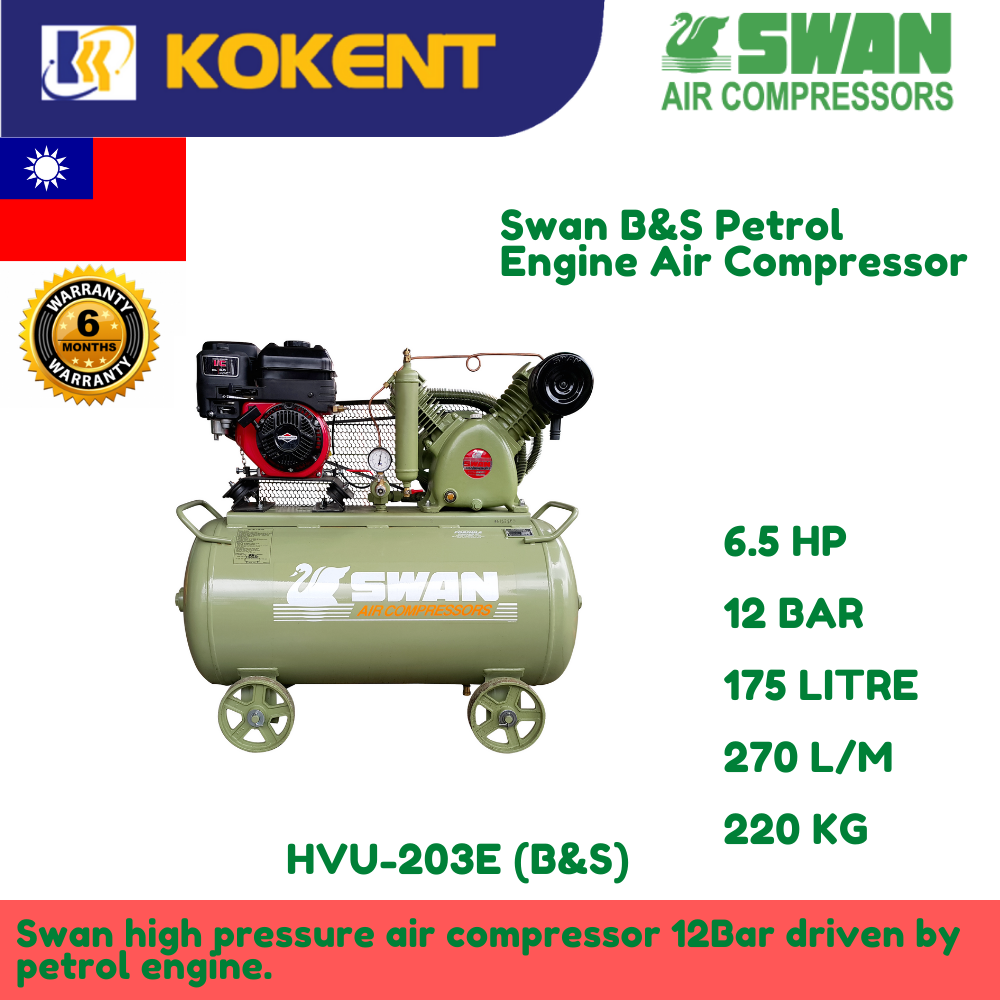

Swan high pressure air compressor 12Bar driven by petrol engine.
Features
- High pressure compressed air comes from two stage compressing air compressor, to disassemble the tire fast and easily.
- Adjustable torque air wrench-ensure the stud firmly lock.
- With petrol engine driving:Provide efficient power to the required work at anywhere.
- Extremely convenient to on call service.
Control System
- Automatic UnloaderSystem “U” Type
The automatic unloading system allows for the control of loaded and unloaded compressor states through a range of pre-set pressure values.
This system is recommended where the duty cycle exceeds 50% and for all larger compressors units.
Specifications
B&S Petrol Engine | 6.5 hp |
Working Pressure (kg/cm²) | 12 Bar |
Compressor Speed | 960 rpm |
F.A.D | 270 L/min |
Tank Capacity | 175 Liter |
Compressor Block Physical Dimension (L x W x H) |
500mm x 330mm x 400mm |
Weight | 47kg |
Compressor Unit Physical Dimension (L x W x H) |
1470mm x 550mm x 1100mm |
Weight | 220kg |
