BOOSTER AIR COMPRESSORS

The booster air compressor is mainly designed for PET industry and well-drilling equipment.  The unique design of the booster air compressor allows it to meet the unique requirements of the applications mentioned above.  Booster air compressors are more energy efficient compared to high pressure 3-stage air compressors.

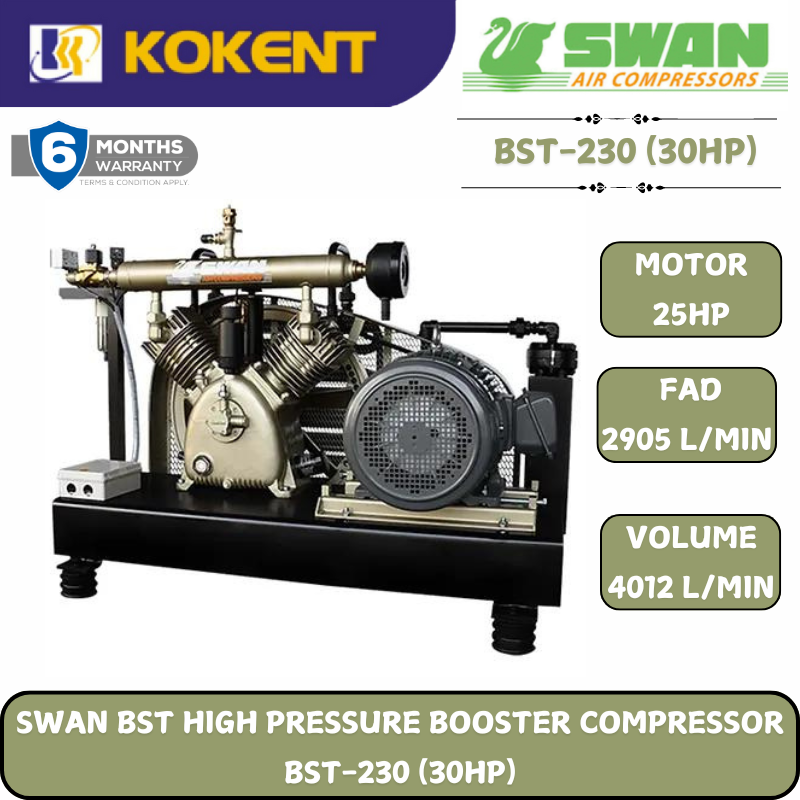

Model: BST-230 (30hp)

Motor: 22kw / 30hp

Inlet Pressure: 7kg/cm²

Discharge Pressure: 40kg/cm²

Design Pressure: 45kg/cm²

Inlet Volume: 4012 L/min

FAD: 2905 L/min
