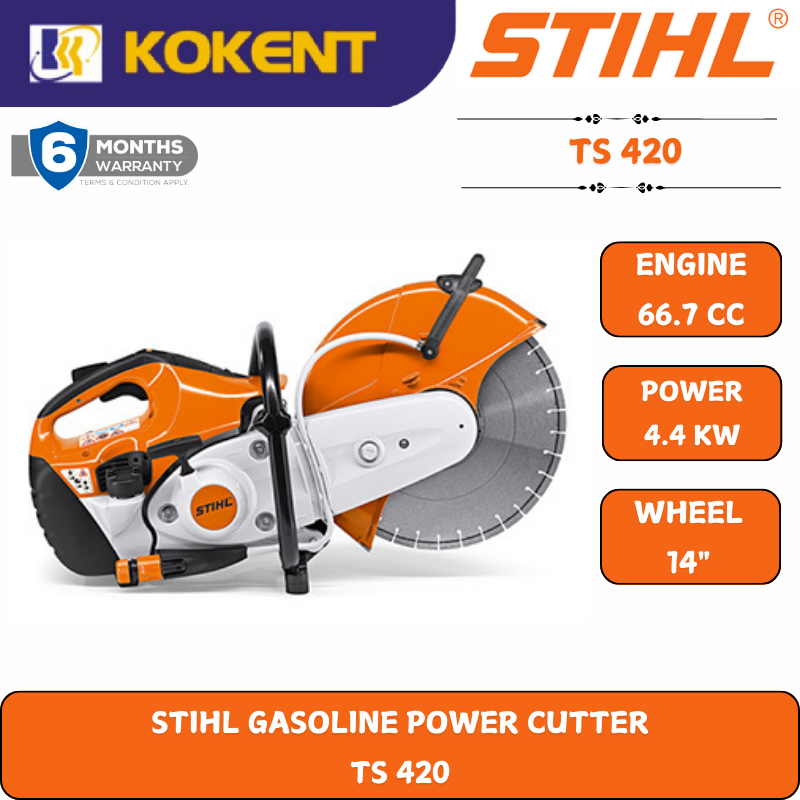

STIHL GASOLINE POWER CUTTER TS 420
Cut-Off Machines
TS 420
Compact and robust, the STIHL TS 420. Long-life filter system with cyclone pre-separation makes on site maintenance unnecessary. Extremely low vibration levels (3.9m/s²). High performance engine with stratified charge system. Compact design and optimised balance for excellent cutting and guide characteristics. For use with 350mm cutting wheel. ElastoStart, primer pump and decompression valve. Bayonet filler cap for tool free opening. Can be hand held or used with the FW 20 cart. Supplied with abrasive cutting wheel.
Technical Details
|
Technical specifications |
Value |
|---|---|
|
Displacement |
66,7 cm³ |
|
Power output |
3,2/4,4 kW/bhp |
|
Weight ¹) |
9,7 kg |
|
Sound pressure level ²) |
98 dB(A) |
|
Cutting wheel |
350 / 14 mm/in |
|
Sound power level ²) |
109 dB(A) |
|
Max. cutting depth |
125 mm |
|
Vibration level left/right ³) |
3,9/3,9 m/s² |
