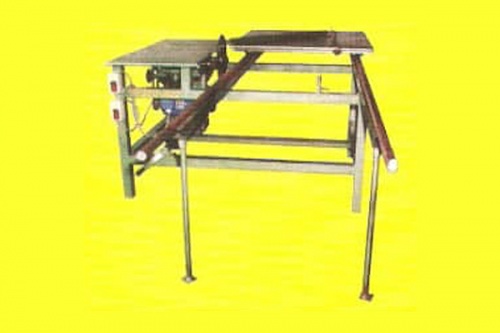

Sliding Table Circular Saw Machine With Scoring Unit
Product Code: SYO-802
Availability: Pre Order
Product Detail
| Model | SYO-802 |
| Motor Power | 2HP, 1PH/3HP,3PH |
| Sawblade Speed | 3000RPM |
| Sawblade Diameter | 255mm - 355mm |
| Sawblade Bore Diameter | 30mm |
| Scoring Blade Diameter | 125-150mm |
| Scoring Blade Speed | 1500rpm |
| Scoring Motor | 1HP, 1PH / 1HP, 3PH |
| Max Cutting Height | 115mm |
| Fixed Table Dimension | 990mm x 495mm |
| Sliding Table Dimentsion | 990mm x 910mm |
| Length Of Hex, Bar | 2640 x 2pcs |
| Machine Size (LXWXH) | 2650mm x 1410mm x 765mm |
| Net Weight | 210kgs |
