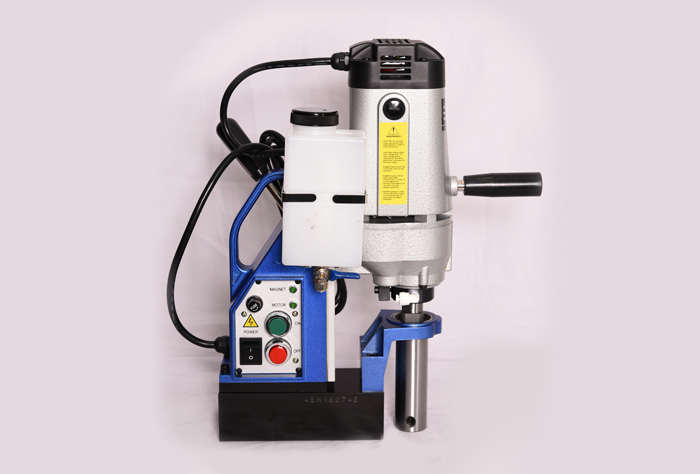

| Model | SH35M | |
|---|---|---|
| Voltage (Single Phase) | 220 – 240V AC 50 / 60 HZ |
|
| Motor Rated Power Consumption | 1100W | |
| Motor Rated Ampere | 5A | |
| No-load Speed | 780 rpm | |
| Tool Adaptor Inner Diameter | 19.05mm | |
| Adjustable In Height For Max. Stroke | 100mm | |
| Coolant Supply | Via Tool Holder | |
| Magnet Power Consumption | 38W | |
| Magnet Adhesion | 7350 N / 750 kgf | |
| Magnet Dimensions | 186mm x 80mm x 58mm | |
| Weight | 14kg | |
| HOLE-CUTTING CAPACITY | ||
| Annular Cutter | Hole Diameter | Plate Thickness |
| 13-35mm (Standard) | 9-50mm (Standard) | |
| Drill Chuck & Twist Dri | 1-13mm | |
| Special Adaptor & Twist Drill | – | |
| STANDARD ACCESSORIES | 1. Pilot Pin 8.0 x 91mm : 1pc 2. Double Open End Wrench : 1pc 3. Operating Handle : 3pcs 4. Lifting Handle : 1pc |
|
| Special Adaptor & Twist Drill | 1. Chuck adaptor arbor 2. Drill Chuck 3. Annual Cutter (one touch or weldon shank) 4. Twist Drill (1-13mm) 5. Hole Saw (13-40mm) 6. Safety Balt |
|
