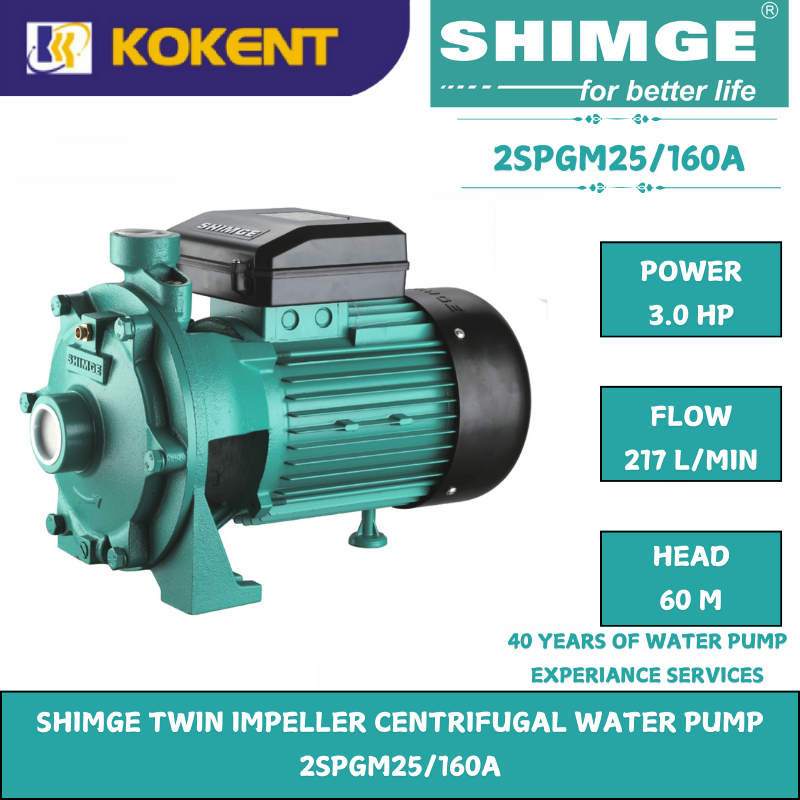

SHIMGE TWIN IMPELLER CENTRIFUGAL WATER PUMP 2SPGM25/160A
Product Code: 2SPGM25/160A
Availability: In Stock
Description
MODEL: Shimge 2SPGm25/160A
Shimge 2SPGm25/160A is a twin impeller centrifugal pump to provide high head with reasonable flow rate. Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
APPLICATIONS LIMITS
- Suction head up to 8m
- Liquid temperature up to +40℃
- Ambient temperature up to +40℃
- Max. Working pressure: 7bar
- Voltage fluctuation should not exceed 10% of rated value.
- pH: 6.5 to 8.5
MOTOR
- Single-Phase 220V/50Hz
- Mechanical seal: Ceramic /Graphite/NBR rubber
- Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
- Protection class: IP44
- Insulation class: F
SPECIFICATIONS
| POWER | 3HP |
| Max. Flow | 217 L/min |
| Max. Height | 60 m |
| Head Range | 28~60 m |
| Max. Suction | 8 m |
| Voltage | 240V |
| Inlet x Outlet | 1½”x1″ |
