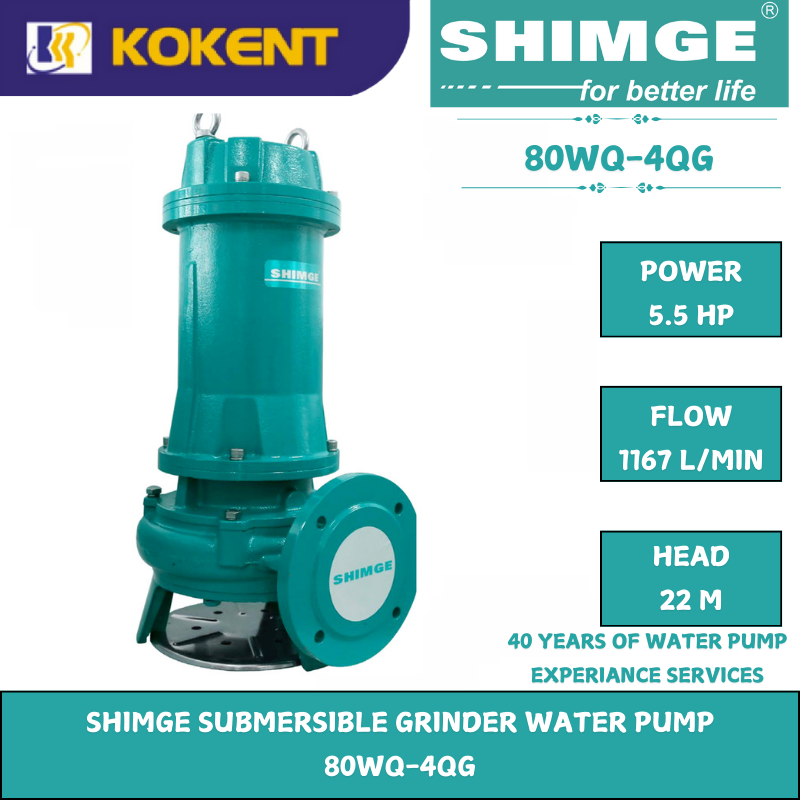

SHIMGE SUBMERSIBLE GRINDER WATER PUMP 80WQ-4QG
Product Code: 80WQ-4QG
Availability: In Stock
Description
MODEL: SHIMGE 80WQ-4QG
Shimge 80WQ-4QG is a submersible grinder pump equipped with a cutting disc and the impeller rotates at a high speed.
FEATURES
- WQ-QG disc cutting sewage sewage submersible pump, implementing Q/SG151 standard.
- The electric motor is an asynchronous motor with a thermal protector device.
- The motor is a two-pole motor.
- Water inlet of the electric pump is equipped with a cutting disc, the impeller rotates at a high speed.
- Long fiber cloth, hair and other debris in the water can be chopped during operation.
APPLICATIONS LIIMITS
- Maximum liquid temperature +40°
- pH level from 4-10
- Maximum liquid density 1.2×103kg/m3
- Power frequency is 50Hz. Nominal voltage is 380VAC ◎ for three phase with the range from -10% to +10%
- Immersion depth from 0.5m-5m
PRODUCT USAGE
- Extract domestic sewage
- Excluding industrial sewage
- Biogas digesters
- Sewage treatment
- Aquaculture sewage
SPECIFICATIONS
| Discharge | 3″ |
| Power | 5.5HP |
| Current | 3φ, 415V |
| Head Range | 5~22m |
| Rated Flow | 333~1167L/min |
| Rated Head | 15m |
