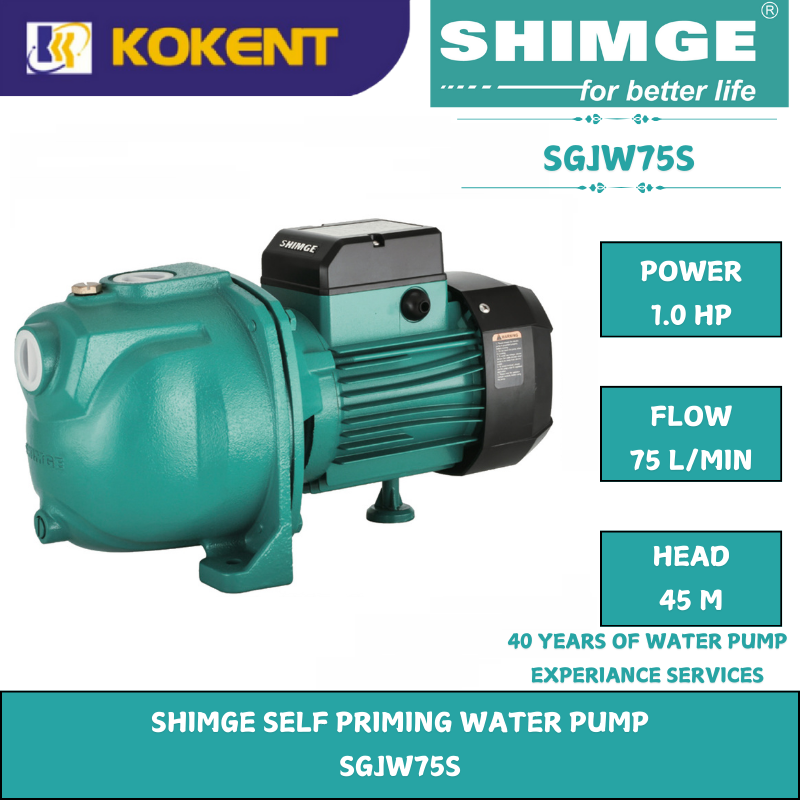

SHIMGE SELF PRIMING WATER PUMP SGJW75S
Product Code: SGJW75S
Availability: In Stock
Description
MODEL: Shimge SGJW75S
Shimge SGJW75S is a self priming pump with high suction power up to 8 meter. It can suck the water in a short time. Widely used in garden irrigation, vegetable greenhouse water supply, breeding industry water supply and drainage, various corollary equipment, etc.
- WITHOUT Automatic Pressure Control
FEATURES
- The JET type self-priming pump
- High suction, with short time
- Different impeller material configuration
APPLICATIONS LIMITS
- Suction head up to 9m
- Liquid temperature up to +40℃
- Ambient temperature up to +40℃
- Max. Working pressure: 5bar
- Voltage fluctuation should not exceed 10% of rated value.
- pH: 6.5 to 8.5
APPLICATIONS FIELDS
- Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
- Widely used in garden irrigation, vegetable greenhouse water supply, breeding industry water supply and drainage, various corollary equipment, etc.
SPECIFICATIONS
| POWER | 1HP |
| Max. Flow | 75 L/min |
| Max. Height | 45 m |
| Head Range | 4.5~45 m |
| Max. Suction | 9 m |
| Voltage | 240V |
| Inlet x Outlet | 1″x1″ |
