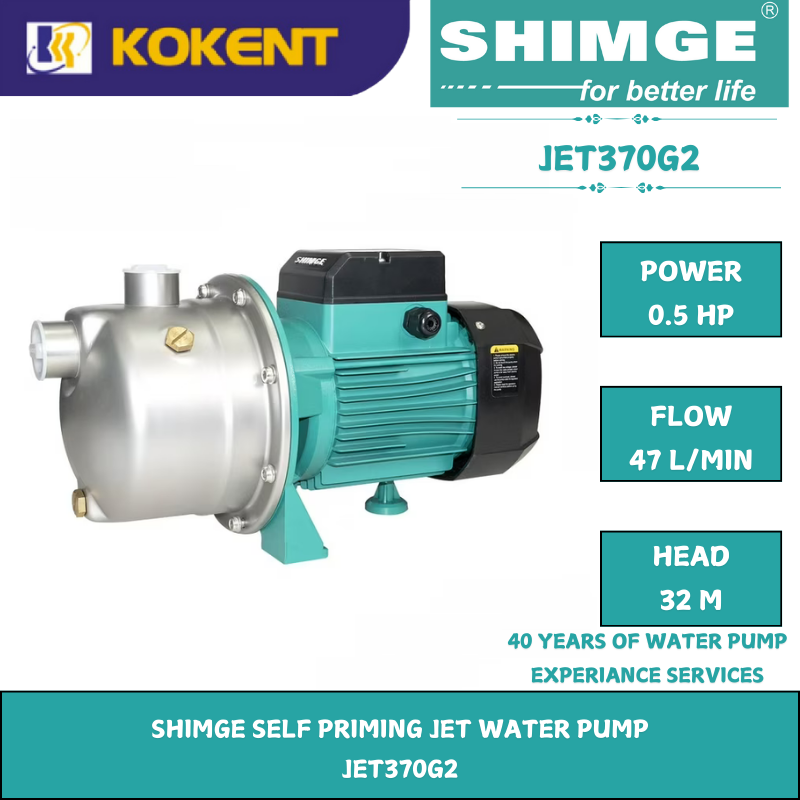

SHIMGE SELF PRIMING JET WATER PUMP JET370G2
Product Code: JET370G2
Availability: In Stock
Description
Model: Shimge JET370G2
Shimge JET370G2 is a self priming jet water pump with stainless steel SUS304. It has very powerful suction.
- WITHOUT pressure control
Applications Limits
- Suction head up to 9m
- Liquid temperature up to +40℃
- Ambient temperature up to +40℃
- Max. Working pressure: 4.8bar
- Voltage fluctuation should not exceed 10% of rated value.
- pH: 6.5 to 8.5
Basic Configuration
- Mechanical sealing: ceramic / graphite / NBR rubber
- Motor: two asynchronous motors, copper coils, built- in thermal protection, all closed fan-cooled, continuous operation
- Protection class: IP44
- Insulation class: F
Applications Fields
- Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
- Widely used in garden irrigation, vegetable greenhouse water supply, breeding industry water supply and drainage,various corollary equipment, etc.
Specifications
| Power | 0.5HP |
| Maximum Flow | 47L/min |
| Maximum Head | 32m |
| Rated Head Range | 5~32m |
| Maximum Suction | 7m |
| Voltage | 240V |
| Inlet Outlet | 1″x1″ |
