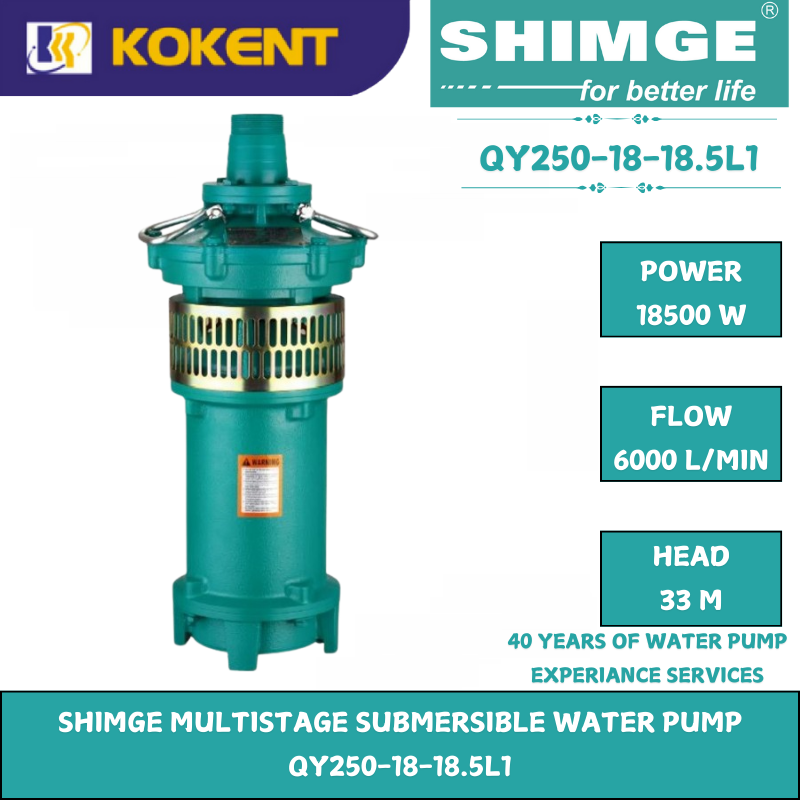

SHIMGE MULTISTAGE SUBMERSIBLE WATER PUMP QY250-18-18.5L1

Description

MODEL: Shimge QY250-18-18.5L1

Shimge QY250-18-18.5L1 is a multistage submersible pump with centrifugal impeller.

• Centrifugal Impeller is NOT recommended to be used less than the lift range.
• Axial flow Impeller is NOT recommended to be used higher than the lift range.

FEATURES

• Wear-resistant whole cast iron parts design.
• Compact structure, easy to use.
• High quality double sides mechanical sealing to be reliable operating.

PERFORMANCE RANGE

• Max. Flow: 360m³/h
• Max. Head: 190m

APPLICATIONS LIMITS

• Maximum liquid temperature +40℃
• pH level from 6.5-8.5
• Maximum sand content is 0.1%.Passage of suspended solids up to 0.2mm
• Power frequency is 50Hz.Nominal voltage is 380VAC for three phase with the range from -10% to 10%
• Immersion depth from 0.5m-5m

APPLICATIONS FIELDS

• Due to multi-stage structure, QY-L1/L2 series pumps with high pressure are widely applied in many fields, such as agricultural irrigation, sprinkler irrigation, garden irrigation, water supply for wells or reservoirs, aquaculture, etc.

SPECIFICATIONS
