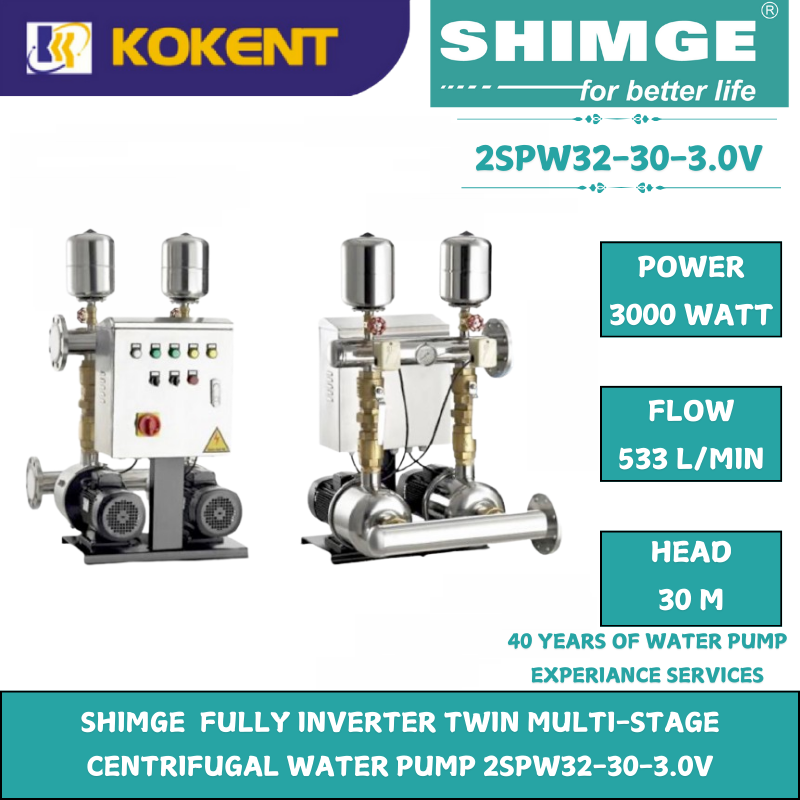

SHIMGE FULLY INVERTER TWIN MULTI-STAGE CENTRIFUGAL WATER PUMP 2SPW32-30-3.0V
Product Code: 2SPW32-30-3.0V
Availability: In Stock
Description
MODEL: Shimge 2SPW32-30-3.0V
Shimge 2SPW32-30-3.0V is a fully-integrated intelligent variable frequency (Inverter) twin multi-stage centrifugal pump with IE2 motor. Fully stainless steel SUS304.
FEATURES
- Ambient temperature up to 40°C.
- The altitude at the installation site is less than 1000meters.
- Ambient humidity 10-90%RH (non-condensing)
- Maximum working pressure: 10 Bar
- Protection class: IP55
- Insulation class: F
- Frequency converter: Class IP65 protection
- Overflowing parts of pump made of stainless steel 304
- Inverter-Automatically adjust the constant pressure and variable frequency water supply. Optimal energy-efficient.
SPECIFICATIONS
Pump Model | BWJ16-3 x 2units |
Pump Power | 3.0kW x 2, 415V, 50Hz |
Recommended Setting of Constant Power | 0.5~3 Bar |
Rate Pressure | 3 Bar |
Rated Flow Rate | 533 L/min |
Maximum Head | 30 meter |
Inlet x Outlet | 3″ x 3″ |
Volume Of Pressure Tank | 5L x 2 |
Dimensions (L x W x H) | 1150mm x 620mm x 1150mm |
