Product Code: 2SPW32-20-2.2V
Availability: In Stock
Loading ...
Share:

Description

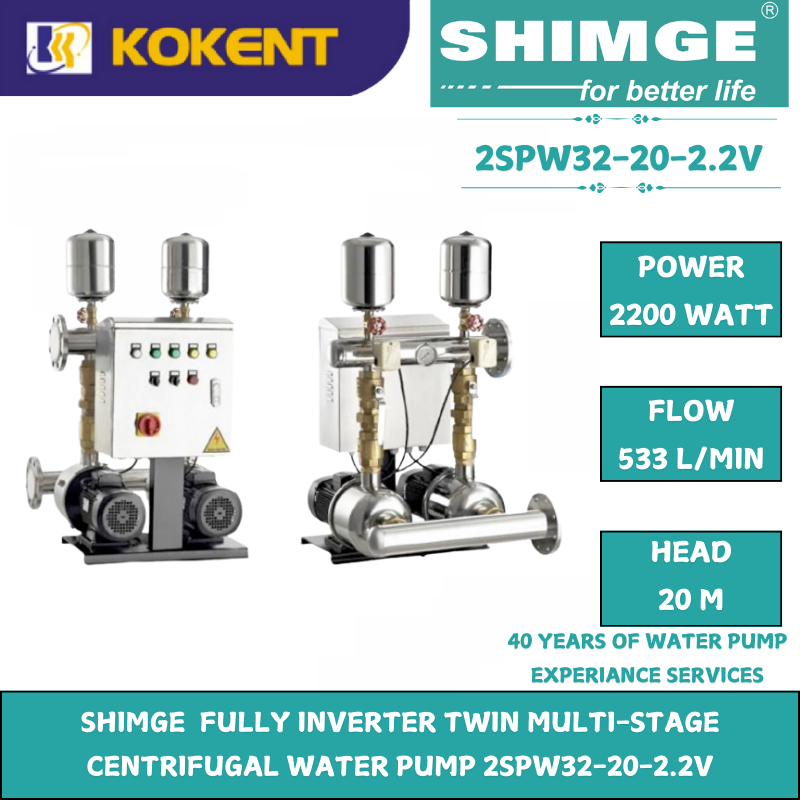

MODEL: Shimge 2SPW32-20-2.2V

Shimge 2SPW32-20-2.2V is a fully-integrated intelligent variable frequency (Inverter) twin multi-stage centrifugal pump with IE2 motor. Fully stainless steel SUS304.

FEATURES

  • Ambient temperature up to 40°C.
  • The altitude at the installation site is less than 1000meters.
  • Ambient humidity 10-90%RH (non-condensing)
  • Maximum working pressure: 10 Bar
  • Protection class: IP55
  • Insulation class: F
  • Frequency converter: Class IP65 protection
  • Overflowing parts of pump made of stainless steel 304
  • Inverter-Automatically adjust the constant pressure and variable frequency water supply. Optimal energy-efficient.

SPECIFICATIONS

Pump Model BWJ16-2 x 2units
Pump Power 2.2kW x 2, 415V, 50Hz
Recommended Setting of Constant Power 0.5~2 Bar
Rate Pressure 2 Bar
Rated Flow Rate 533 L/min
Maximum Head 20 meter
Inlet x Outlet 3″ x 3″
Volume Of Pressure Tank 5L x 2
Dimensions (L x W x H) 1150mm x 620mm x 1150mm
