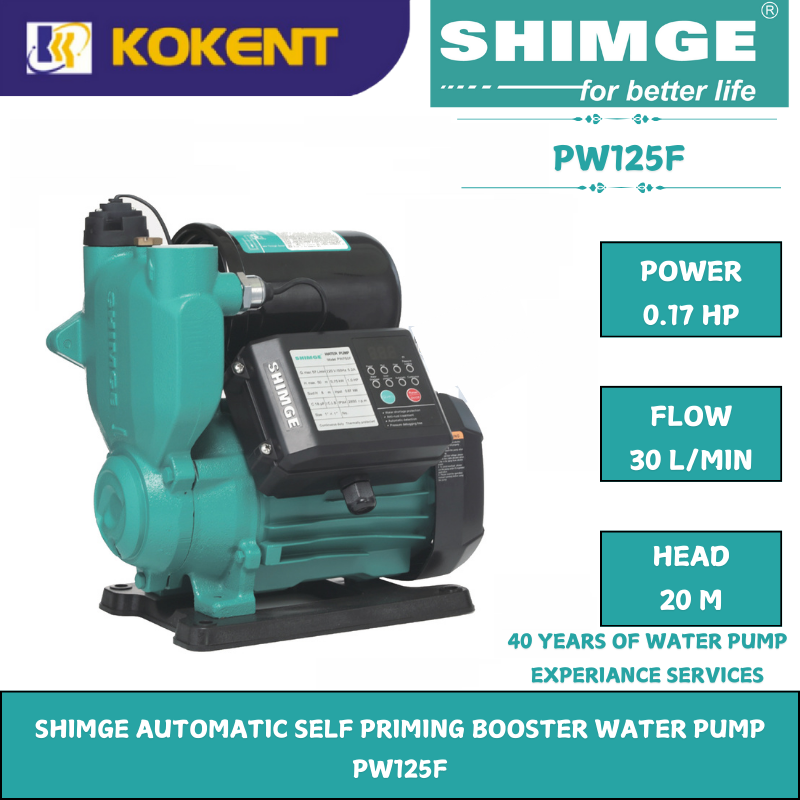

SHIMGE AUTOMATIC SELF PRIMING BOOSTER WATER PUMP PW125F

Description

Model: Shimge PW125F

Shimge PW125F is a surface automatic booster pumps (self priming peripheral pump) with dry run protection and digital display.

Features and advantages

• PW-F model equip with digital display function and also come with pressure sensor and flow switch, which means when the pressure sensor was malfunction, the pressure switch alone still able to start or stop the pumps. Flow switch with self-rotation function to avoid dust accumulation.
• A self-priming peripheral pump for both hot and cold water.
• Advanced structure with lower noise.
• Intelligent control by both flow sensor and pressure sensor, which is convenient.

Materials

• Pump body: Cast iron with stainless steel insert
• Motor casing: Aluminum
• Impeller: Brass
• Shaft: Welded by SUS304 and Cs45#
• Mechanical seal: Ceramic/Graphite/NBR
• Copper winding

Applications Fields

• The self-priming peripheral pump is suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
• It’s widely used in household water supply, well water pumping, tap water pressure, water tower’s supply, solar or hot water systems pressure, etc.

Operating Condition

• Suction lift up to 8m
• Liquid temperature ≤+90℃
• Environment temperature ≤ +40℃
• Max. working pressure: 5bar

SPECIFICATIONS
