ROTABROACH MAGNETIC DRILL ELEMENT75
Product Code: ELEMENT75
Availability: In Stock

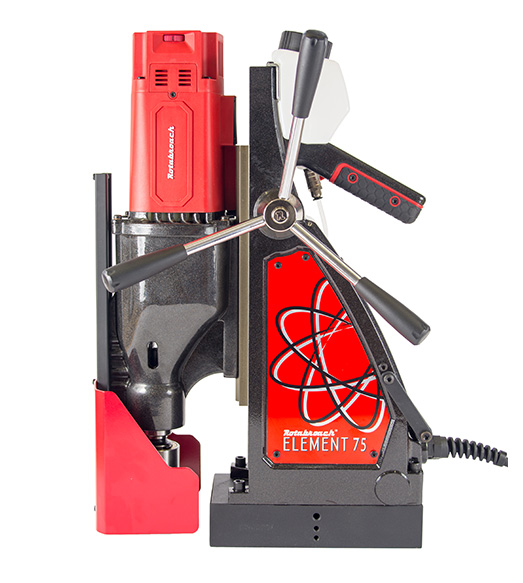

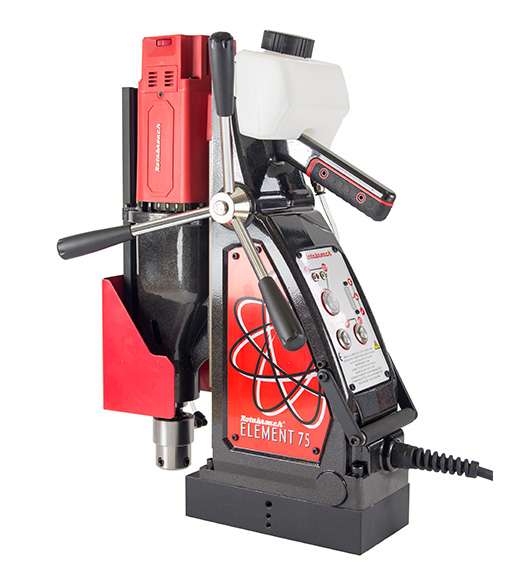

Element 75
- For heavy duty operations the ‘Element 75’ is a must for drilling larger holes.
- Compact, durable and more portable than other larger machines.
- Suitable for drilling up to 75mm diameter by 75mm depth.
- The ‘Element 75’ offers forward and reverse functionality.
- The ‘Element 75’ can be supplied as a swivel base or a non-swivel option.
- The Element range uses a unique dual motor protection system prolonging the machines life and preventing unwanted wear.
| Model Number | Element 75/1 / Element 75/3 |
| Motor Specification | 110V 1800W / 230V 1800W |
| No Load RPM | Low Gear: 70 -180 RPM
High Gear: 200-500 RPM |
| Max Hole Cutting Capacity | ø75 x 75mm Deep – 26mm with MT Drill |
| Overall Dimensions | Height: 545mm / Width: 230mm with Capstan / Length: 460mm with Guard |
| Machine Weight | 23.5kg |
| Magnetic Adhesion | 18,500N |
| Magnet Size | 220mm x 114mm |
| Safety Features | Cutsmart™ Technology / Fixed Guard / Magnetic Detection / Mechanical Clutch |
