Qing Yang TQ80C: Pipe Threading Machine, Threading Size: 1/2″~3″, 11 & 23rpm, 750W, 95kg
Qing Yang TQ80C: Pipe Threading Machine, Threading Size: 1/2″~3″, 11 & 23rpm, 750W, 95kg

Qing Yang TQ80C: Pipe Threading Machine, Threading Size: 1/2″~3″, 11 & 23rpm, 750W, 95kg

Product Code: TQ80-C
Availability: In Stock
Loading ...
017 432 8850012 387 8850
Share:

Model: TQ80C

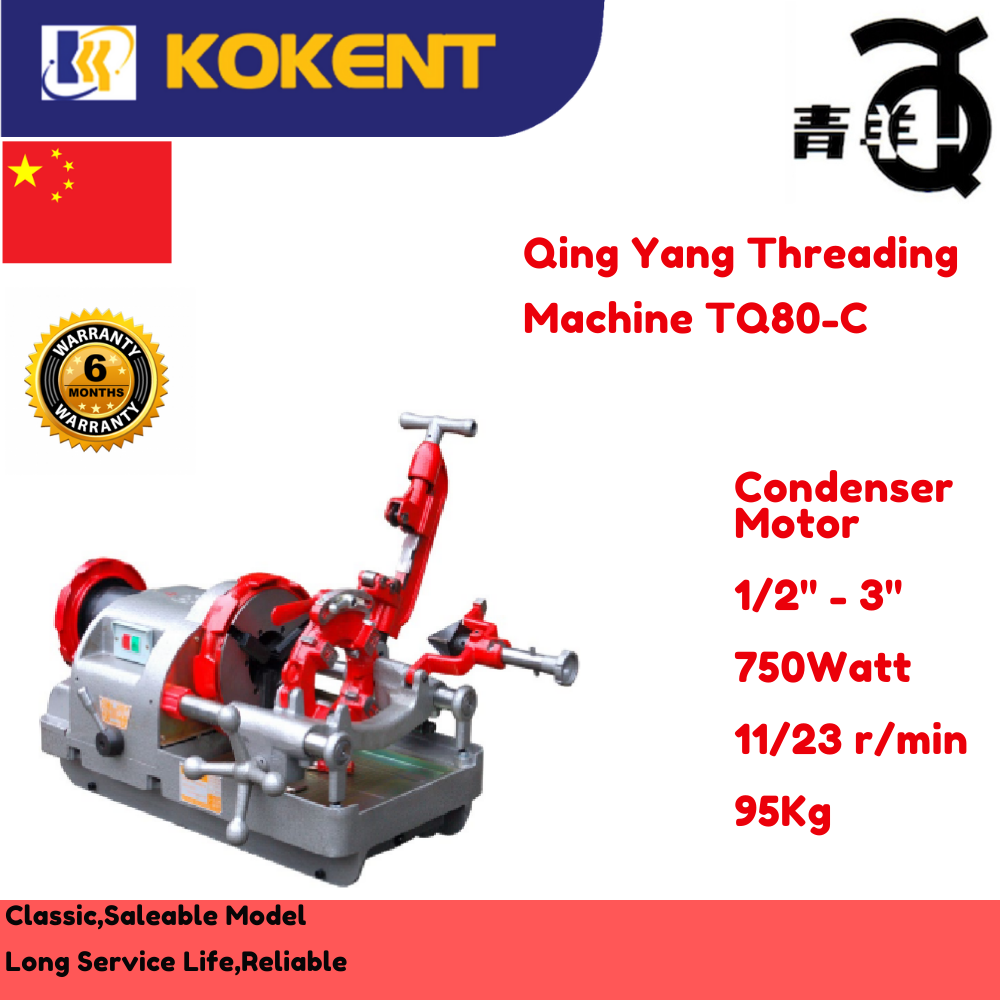

Qing Yang TQ80C portable pipe threading machine 1/2″~3″.

Features

  • Condensor Motor (Low noise)
  • Manual Die Head
  • High reliability.
  • 2 speeds.

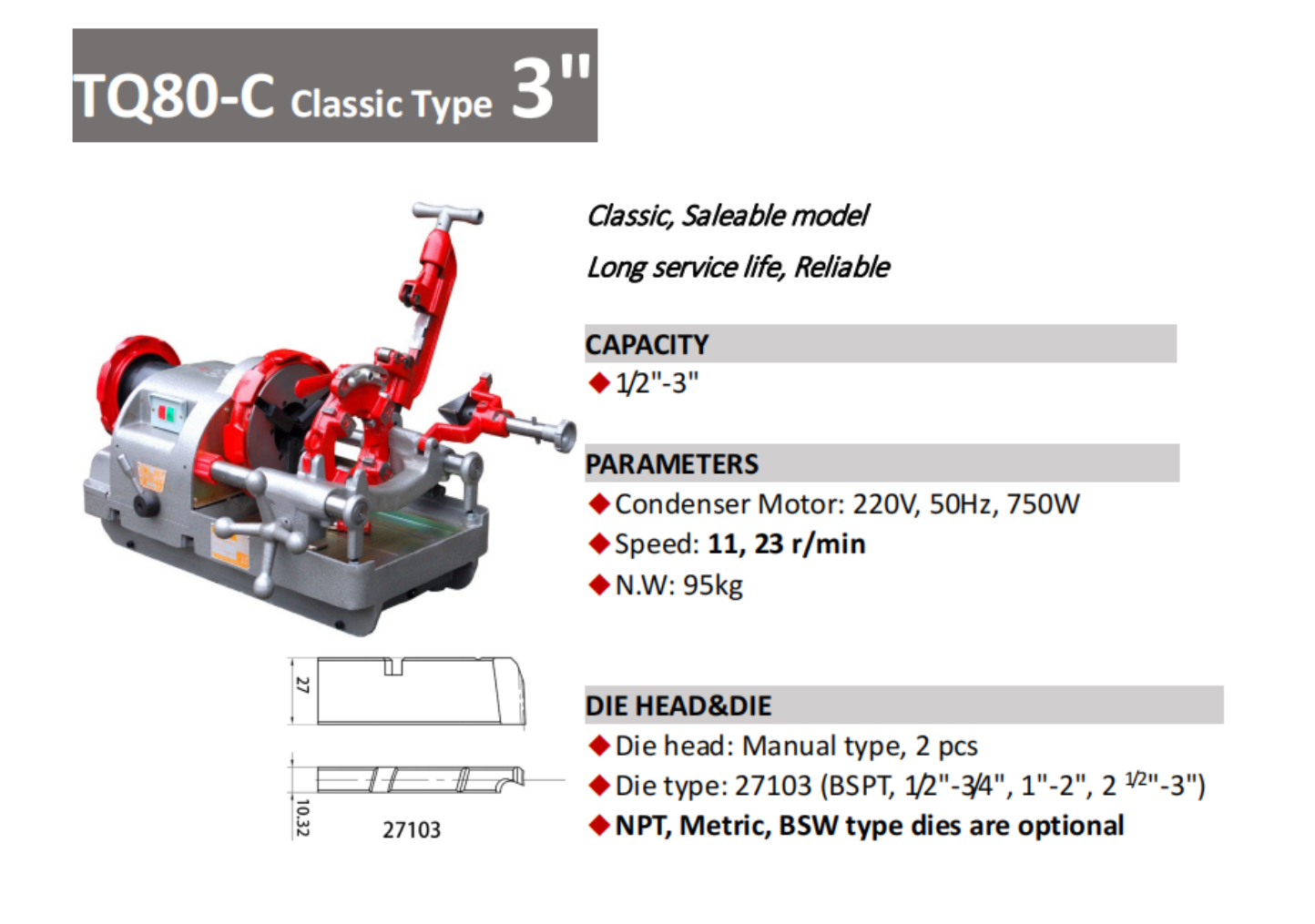

Specifications

Threading Capacity 1/2″ ~ 3″
Speed 11 & 23 rpm
Motor Condensor Motor 750W, 2800rpm
Voltage 220V, 50Hz, 5.6A
Die Head Manual
Die Type BSPT (Exchangeable with REX)
Die specification and size a) 1/2~3/4″
b) 1~2″
c) 2½”~3″
Net Weight 95kg
Dimensions (L x W x H) 790mm x 470mm x 388mm
Packing Size (L x W x H) 956mm x 576mm x 505mm

Accessories Included

  • 1/2″~3/4″ BSPT dies
  • 1″~2″ BSPT dies
  • 2½-3″ BSPT dies
