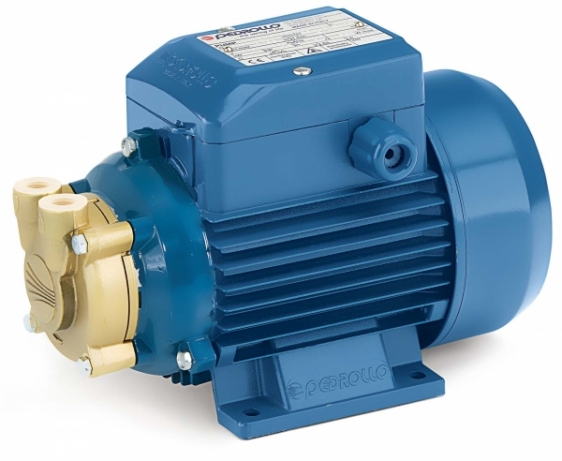

PEDROLLO Pump with peripheral impeller (II)
PEDROLLO Pump with peripheral impeller (II)

PEDROLLO Pump with peripheral impeller (II)

Product Code: PVm 55
Availability: In Stock
Loading ...
017 432 8850012 387 8850
Share:

PREFER CONTACT KENT

INSTALLATION AND USE

Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made. The design of this particularly compact brass pump off ers an effective guarantee against the formation of rust and oxidation; as a result they are recommended for use in industrial applications such as cooling and conditioning. The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

PERFORMANCE RANGE

  • Flow rate up to 10 l/min (0.6 m³/h)
  • 50 Hz: head up to 42 m
  • 60 Hz: head up to 55 m

PATENTS - TRADE MARKS - MODELS

  • Motor bracket: patented n° IT1243605
  • Registered Community Design n° 342159-0002

APPLICATION LIMITS

  • Manometric suction lift up to 8 m
  • Liquid temperature between -10 °C and +90 °C
  • Ambient temperature between -10 °C and +40 °C
  • Max. working pressure 10 bar
  • Continuous service S1

GUARANTEE

2 years subject to terms and conditions

OPTIONALS AVAILABLE ON REQUEST

  • Special mechanical seal
  • EN 10088-3 - 1.4401 (AISI 316) stainless steel motor shaft
  • Other voltages
  • IP55 class protection
MODEL
single-phase		 MODEL
three-phase		 POWER
kW		 POWER
HP		 0
0		 0.12
2		 0.18
3		 0.24
4		 0.30
5		 0.36
6		 0.42
7		 0.48
8		 0.54
9		 0.60
10
PVm 55 PV 55 0.18 0.25 42 35 31 27.5 24 20.5 16 12.5 9 5
PVm 55 PV 55 0.18 0.25 55 46 41.5 37 32.5 28 23.5 19 14.5 10



COMPONENT CONSTRUCTION CHARACTERISTIC
PUMP BODY Brassnwith threaded ports in compliance ISO 228/1
PUMP BODY BACK-PLATE Brass
MOTOR BRACKET  Aluminium
IMPELLER Brass with peripheral radial vanes
MOTOR SHAFT  Stainless steel EN 10088-3 - 1.4101
ELECTRIC MOTOR
  • PVm: single-phase 230 V - 50÷60 Hz with thermal overload protector built-in to the winding.
  • PV: three-phase 230/400 V - 50÷60 Hz.
  • ➠ Pump fi tted with the three-phase motor option off ers IE2 (IEC 60034-30) class high performance
  • Insulation: F class.
  • Protection: IP 44.



MECHANICAL SEAL Seal
Model		 Shaft
Diameter		 Materials
Stationary ring		 Materials
Rotational ring		 Materials
Elastomer
  MG1-12E Ø 12 mm Silicon carbide Graphite EPDM



CAPACITOR Capacitance
  230÷240 V (50÷60 Hz)                            110 V (50÷60 Hz)
10 μF 450 VL                                      25 μF 250 VL
