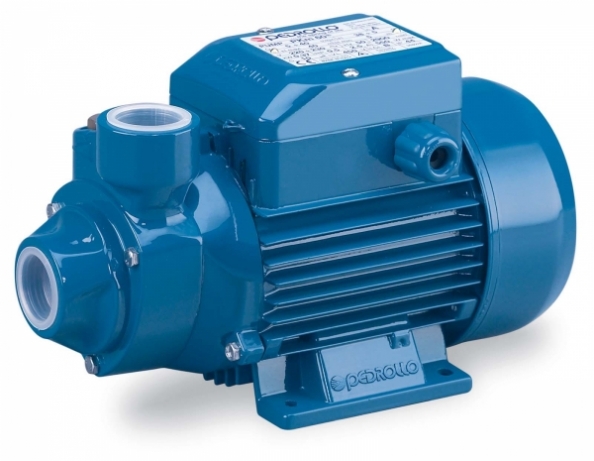

Product Code: PKm 60
Availability: In Stock
Loading ...
017 432 8850012 387 8850
Share:

PERFORMANCE RANGE

  • Flow rate up to 90L/min (5.4m3/h)
  • head up to 100m

INSTALLATION AND USE

  • Suitable for use with clean water that does not contain abbrasive particles and liquids that are not chemically aggresive towards the materials from which the pump is made.
  • The pump should be installed in an enclosed environment or at least sheltered from inclement weather.

APPLICATION LIMITS

  • Manometric suction lift up to 8m
  • Liquid temperatura between -10 °C and +60 °C
  • Ambient temperature up to +40 °C
  • Max. working pressure: 6.5 bar for PK 60-65-70-80, 10 bar for PK 90-100-200-300
  • Continuous service S1

PATENTS - TRADE MARKS -  MODELS

  • motor bracket : patent n° IT1243605 (reduces the risk of the impeller locking after long periods of inactivity)
  • PKm 60® is a registered trade mark
  • Registered Italian model n° 72753

Model Model Power Power 0 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 3.0 3.6 4.2 4.8 5.4
Single-phase Three-phase kW HP 0 5 10 15 20 25 30 35 40 50 60 70 80 90
PKm 60® PK 60® 0.37 0.50 40 38 33.5 29 24 19.5 15 10 5
PKm 65 PK 65 0.50 0.70 55 50 45.5 40.5 36 31 27 22 17 8
PKm 70 PK 70 0.60 0.85 65 62 57 52 47 42 37 32 27 18
PKm 80 PK 80 0.75 1 70 66 61 56 51 46 41 36.5 31 22
PKm 90 PK 90 0.75 1 90 82 71 60 49 38 27 17 5
PKm 100 PK 100 1.1 1.5 85 80 75 70 65 60 55 50 45 35 25 15
PKm 200 PK 200 1.5 2 90 86 81 76 71 65.5 60 55 50 40 30 20 10
- PK 300 2.2 3 100 95 90 85 80 75 70 65 60 50 40 30 20



COMPONENT CONSTRUCTION CHARACTERISTICS
PUMP BODY Cast iron, complete with threaded ports in compliance with ISO 228/1
MOTOR BRACKET Aluminium with brass insert (patented), reduces the risk of impeller
IMPELLER Brass, with peripheral radial vanes
MOTOR SHAFT Stainless steel EN 10088-3 - 1.4104



MECHANICAL SEAL

Pump

Model

Seal

Model

Shaft

Diameter

 Stationary ring

Materials

Rotational ring

 Elastomer
  PK 60-65-70-80 AR-12 Ø 12 mm Ceramic Graphite NBR
  PK 90 MG1-12 Ø 12 mm Silicon carbide Graphite NBR
  PK 100-200-300 FN-14 Ø 14 mm Graphite Ceramic NBR



BEARINGS PUMP MODEL
  PK 60-65 6201 ZZ / 6201 ZZ
  PK 70-80-90 6203 ZZ / 6203 ZZ
  PK 100-200-300 6204 ZZ / 6204 ZZ



CAPACITOR

PUMP

Single-phase

CAPACITANCE

230V or 240V



110V
  PKm 60 10 μF 450 VL 25 μF 250 VL
  PKm 65 14 μF 450 VL 30 μF 250 VL
  PKm 70 16 μF 450 VL 60 μF 300 VL
  PKm 80 20 μF 450 VL 60 μF 300 VL
  PKm 90 20 μF 450 VL 60 μF 300 VL
  PKm 100 31.5 μF 450 VL 60 μF 250 VL
  PKm 200 45 μF 450 VL 80 μF 250 VL





EELECTRIC MOTOR
  • PKm : single-phase 230V - 50Hz with thermal overload protector built-in to the winding.
  • PK : three-phase 230/400V - 50Hz
  • Pumps fitted with the three-phase motor option offer IE2 (IEC 60034-30) class high performance
  • INSULATION : F class
  • PROTECTION : IP44
