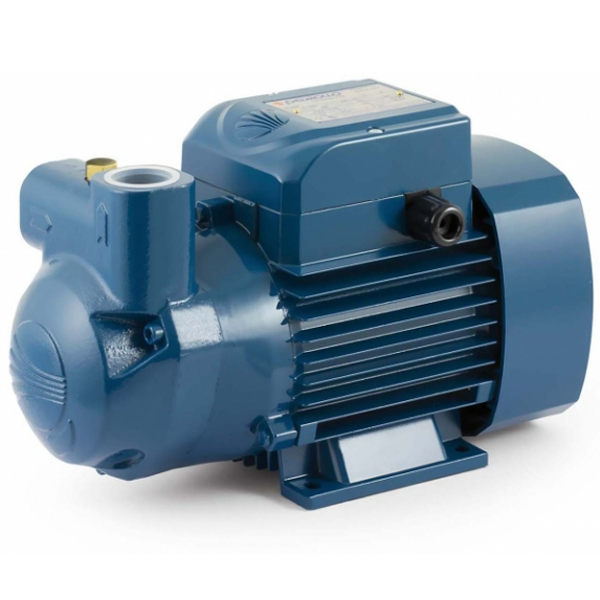

Pedrollo Self Priming Pump for Diesel 550W 5~50L/m 46~10m CKm80E

Model: CKm80E (Single Phase)

Price inclusives 6%GST.

Descriptions

• Suitable for use with diesel, clean water that does not contain abrasive particles and liquids that are not chemically aggressive towards the materials from which the pump is made.
• As a specific result of the pump’s operating principle they are suitable for use in all situations where a compact self-priming pump is required or where the fluid supply is limited, irregular or contains air.
• The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

Performance Range

• Flow rate up to 50 l/min (3 m³/h)
• Head up to 51 m

Application Limits

• Manometric suction lift up to 9 m (HS)
• Liquid temperature between -10 °C and +90 °C
• Temperature of diesel up to +55°C
• Ambient temperature up to +40 °C
• Max. working pressure 6 bar
• Continuous service S1

Specifications
